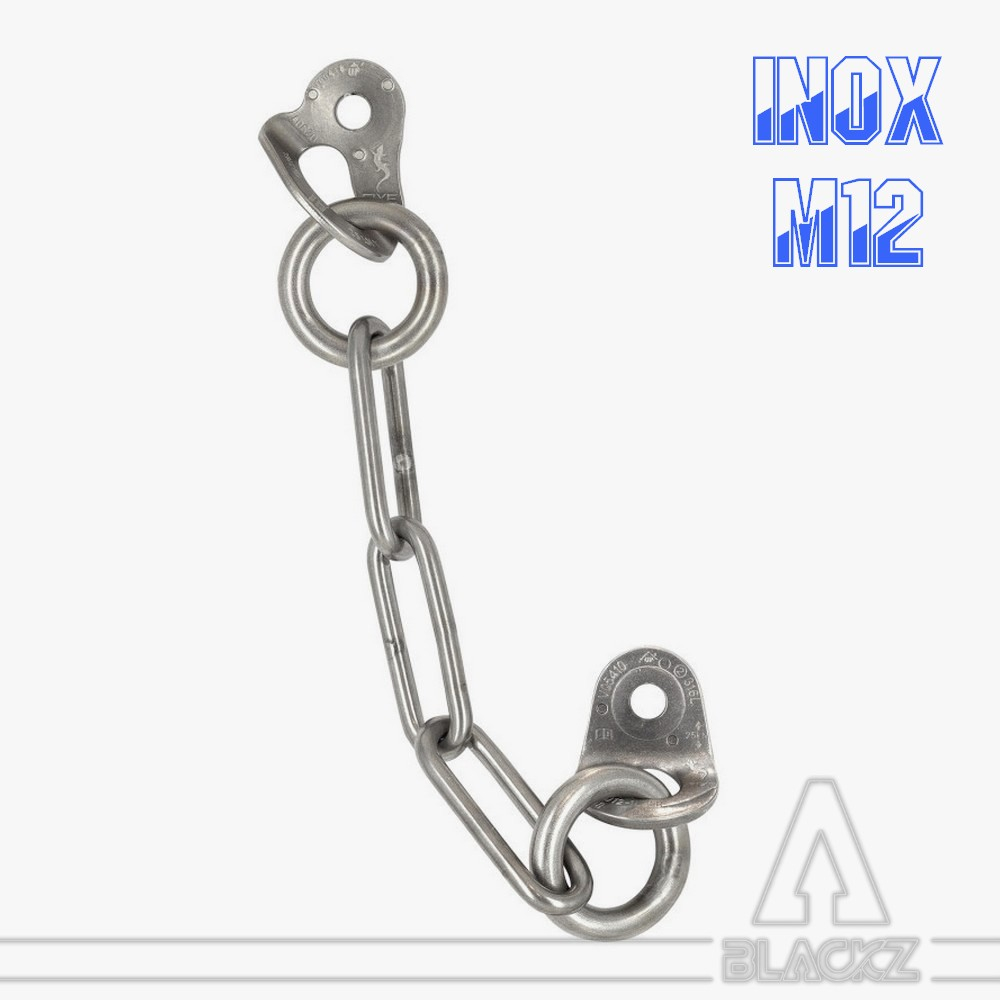

D chain belay PLATE 12mm Stainless steel

Double stainless steel PLATE type anchor with D CHAIN - to anchor with M12 stud or bolt.

2 x M12 anchor plate 25 kN and final ring internal Ø 34 mm.

Double anchors with D-chain, whether used with studs and plates or directly with chemically anchored pitons, represent a major advantage in the field of technical anchors.

They improve security by providing a higher level of redundancy due to the two anchors.

Specifications

 * Activity: Climbing, Rescue, Work at heights
* Material: stainless steel 316L
* Manufacturer: FIXE Climbing
* Height lost under the studs due to the chains: 185 mm
* Dimension of the hole : 13 mm for M12 bolt
* Dimension of the final ring : 34 mm int. x 10 mm thickness
* Weldings: TIG
* MBS - Minimal Breaking Strength: 25 kN (also 25 kN by plate)
* Resistance superior to the equivalent of 12 kN of the standard on Professional FALL PROTECTION ANCHORS: EN 795 (2012)
* Standards: EN 795, EN 959, EN 365
* Sold by piece
