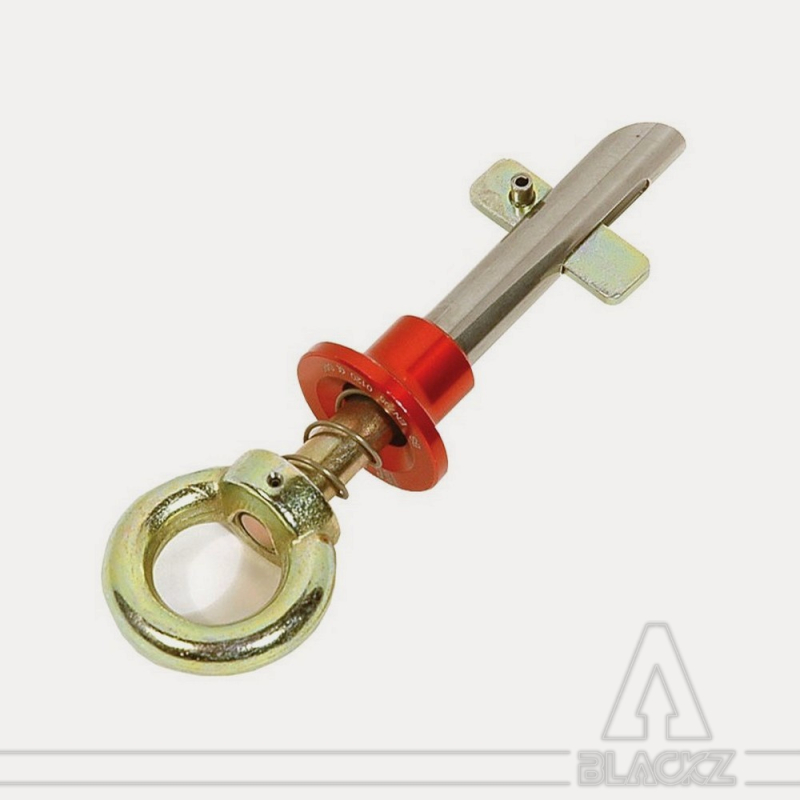

Retrievable Anchor - GIRDER GRIP

Removable tilting fall arrest anchor 28 kN EN 795 - ISC Girder Grip GG101

A rare fall protection anchor that allows it to be placed directly in the hole of a structure, material or beam.

This very original product allows you to quickly create and move strong anchors (EN 795 validated for fall protection) in simple holes that would have been created in any solid support of the structure or building.

Thanks to its quick mechanism, it allows it to be anchored directly in the work area without incurring the cost of numerous certified rings.



Description

ISC Girder & Concrete Anchors are a quick and easy portable anchorage solution which can be used in the vertical and horizontal plane.

These anchors are operated by using two fingers to pull back the red collar.

This action retracts the retention bar, allowing the device to be inserted into the anchor hole.

Once the device is in position, the red collar can be release, causing the retention bar to engage, fixing the device in position.

Benefits

This very original product essentially differs from other anchoring components on the market:

* It moves quickly with a simple movement of the fingers
* It is installed more quickly than the time it takes to make a conventional fixed anchor
* It can therefore remain attached to the safety line, the fall arrester or the access rope when the anchor is moved.
* It can allow horizontal movements on the underside of a ceiling or beam by simply moving the anchors in the holes
* It saves the cost of MANY permanent FIXED points for fall protection
* It saves the cost of INITIAL CERTIFICATION of these many permanent fixed points intended for fall protection
* It saves the cost of PERIODIC CHECKING of these many permanent fixed points intended for fall protection
* It allows the numerous permanent fixed points not to be left visible
* It allows you to avoid the danger of obstacles posed by numerous permanent fixed points
* It makes it easy to fill holes, whereas fixed points would have to be destroyed with a grinder
* It is easier to inspect periodically than a permanent fixed point which cannot be dismantled
* It allows you to take it with you and provides more confidence in the equipment than unknown fixed points
* It allows you to have numerous anchoring possibilities by simply multiplying the holes
* It is ecological and economical because it moves with the person according to real needs rather than waiting for hypothetical needs like fixed anchors
* Suitable holes can be planned during the design of the construction in order to limit the operations to be carried out on site

Specifications

* Standard: EN 795 /B
* CE certified fall arrest
* Insertion diameter: Min 19.5mm
* Width of the bar after rocker: 56 mm
* Max thickness of support material: 43 mm
* Color: Red and Gold
* MBS: 2800 daN (kg)
* Material : High tensile steel, and aluminium.
* Finish : Plated, polished and anodized.
* Quality : 100% inspected and function tested.
* Weight : 560 g
