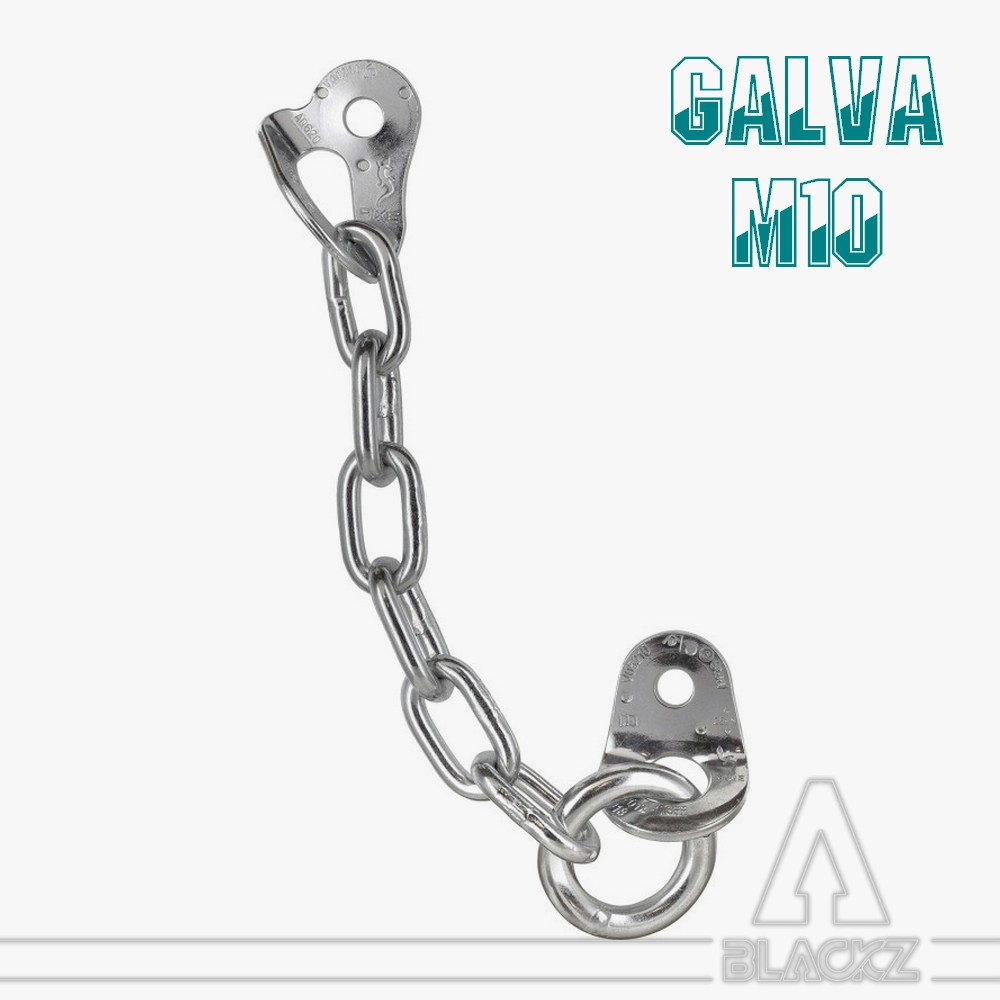

D chain belay PLATE 10mm steel

Double steel PLATE type anchor with D CHAIN - to anchor with M10 stud or bolt.

2 x M10 anchor plate 25 kN and final ring internal Ø 34 mm.

Double anchors with V-chain, whether used with studs and plates or directly with chemically anchored pitons, represent a major advantage in the field of technical anchors.

Not only do they improve security by providing a higher level of redundancy due to the two anchors, but they also make it possible to better distribute the load on the anchors and respect the symmetry of certain assemblies.

In some applications of acrobatic rigging generating heavy loads and for which safety is a major factor (flying trapeze nets for example), it is recommended to use double anchors with chain.

Specifications

 * Activity: Climbing, Rescue, Work at heights
* Material: steel
* Manufacturer: FIXE Climbing
* Height lost under the studs due to the chains: 185 mm
* Dimension of the hole : 11 mm for M10 bolt
* Dimension of the final ring : 34 mm int. x 10 mm thickness
* Weldings: TIG
* MBS - Minimal Breaking Strength: 25 kN (also 25 kN by plate)
* Resistance superior to the equivalent of 12 kN of the standard on Professional FALL PROTECTION ANCHORS: EN 795 (2012)
* Standards: EN 795, EN 959, EN 365
* Sold by piece
