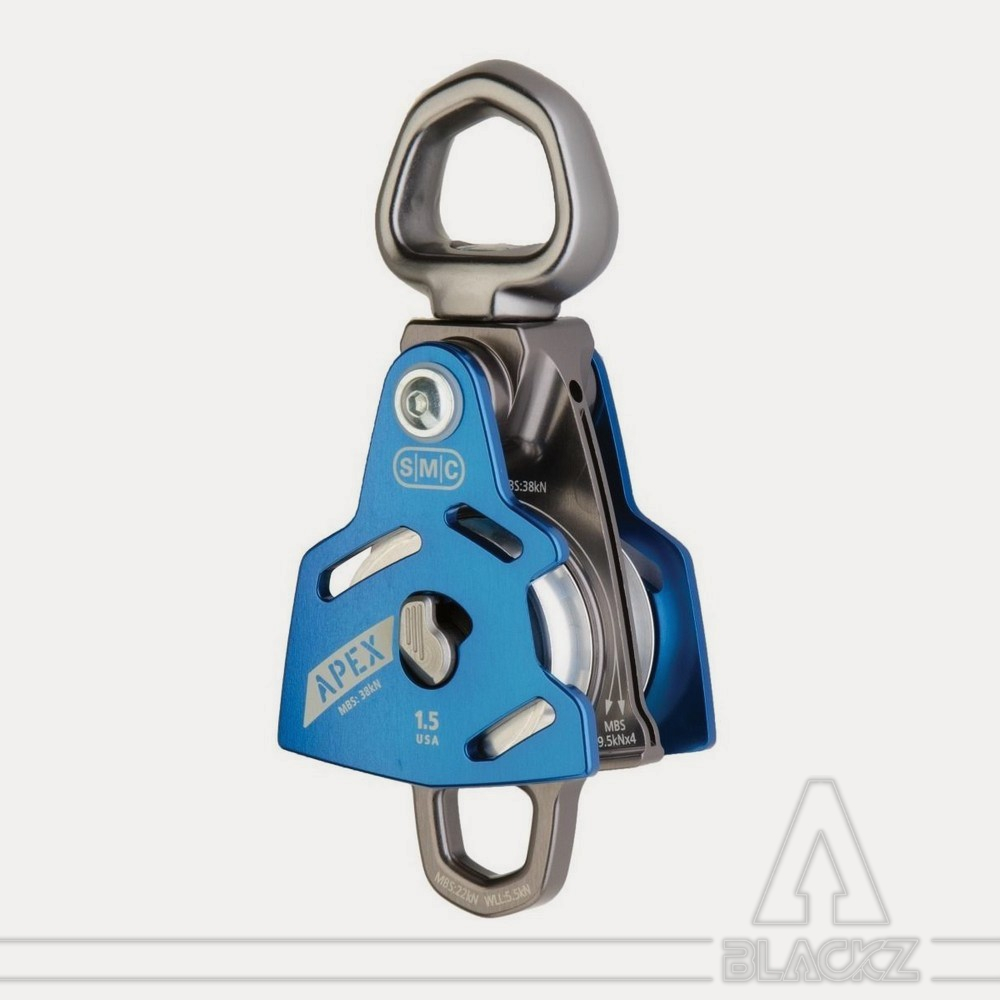

APEX Double Swivel 1.5

The APEX range from HARKEN SMC complements the existing offer of side opening pulleys under load.

Thanks to its swivel and its cheek that opens by rotation, it allows easy engagement of the ropes without having to disconnect the pulley from its support.

Its Rotation/Push opening mechanism and the original rotation of its cheek from the top of the pulley distinguish it from equivalent models from ROCK EXOTICA and PETZL.

Description

APEX Swivel Swing Blocks offer both easy one-handed opening and unmatched security.

Opening and security are ensured by a patented triple action locking mechanism (Turn, Push, Open).

When closed, the assembly automatically engages for intuitive and ergonomic operation, even with gloves.

The APEX have 2 extended, trapezoidal flanges at the bottom to block the Prusiks.

The rings of the APEX 1.5 and 1.1 are designed to accommodate up to 3 carabiners.

All rings are very rounded and are compatible with all textile anchors.

APEX Swivel

The APEX Swivel has a swivel.

The pulley is specially designed to orient naturally in the axis of the load and not force laterally.

Ring: LARGE

* Correct for: 3 carabiners
* Section thickness: 16 x 11 mm
* Interior: 30 x 25 mm

Specifications

* Efficient sealed bearings
* Weight: 478 g
* Conformity: CE - UK.CA - NFPA
​* Max rope diameter: 13 mm
​* Color: Blue/Grey
* SWL / WLL: 9,5 kN (950 kg)
* MBS: 38 kN (3800 kg)
* Standards: EN 12278 - NFPA class G
* Made in the USA
