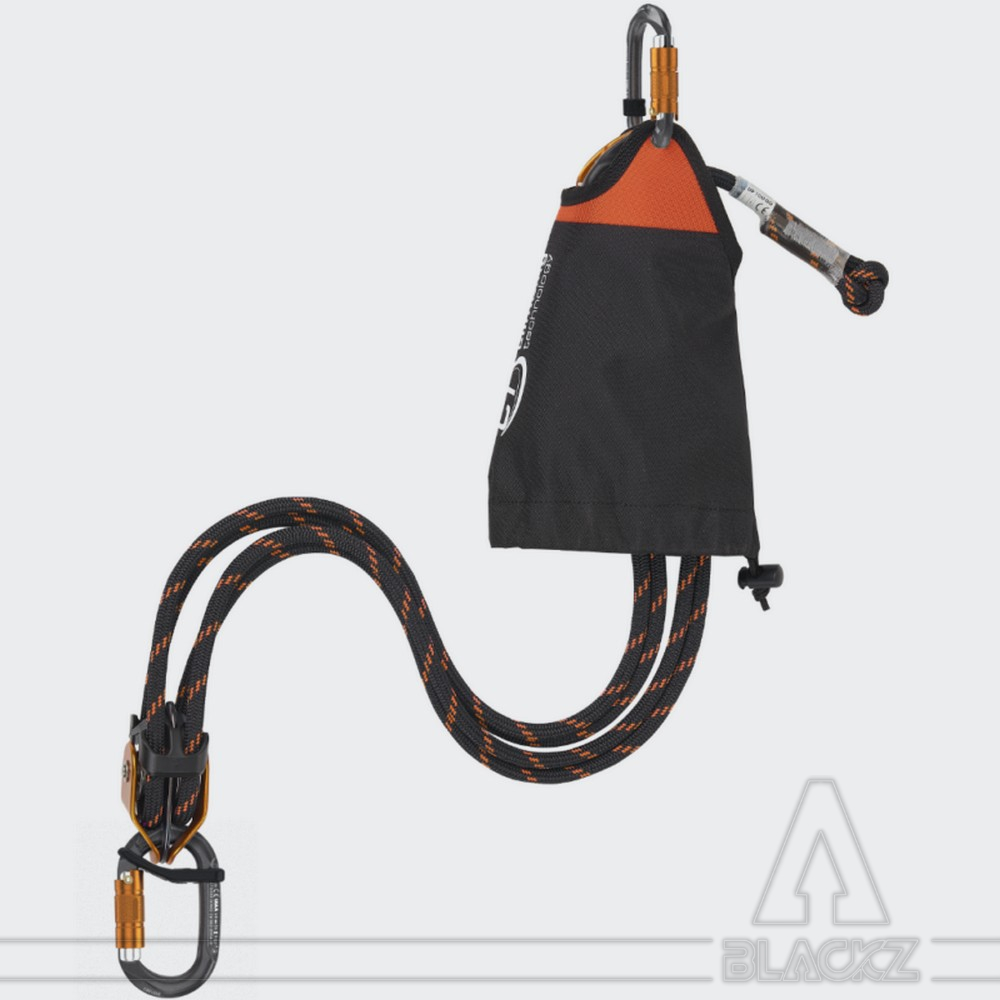

UP YOU GO

Auto-locking haul system, ideal for use in rescue operations.


Auto-locking haul system with 4:1 mechanical advantage – or 5:1 if used upside down – ideal for use in rescue operations.

Developed for lifting and releasing an injured operator or for tensioning a system.

Available in 3 different lengths (unfolded position): 1m, 2m or 5m (made to order).

Main features :

* CE-marked and tested with a load of 18 kN for 3 minutes,
* Extremely compact system, ideal where space for manoeuvring is limited,
* It prevents the load from slipping back once has been retrieved, making hauling operations smoother and faster,
* Comprised of UP ROLL and UP LOCK pulleys, equipped with sheaves mounted on ball bearings,
* It comes with a closable pouch to reduce bulk during transport,
* Drawstring closure that further expedites setting up the equipment,
* Equipped with rope guide (patent pending), installed on the lower pulley, that keeps rope strands parallel and reduces the risk of tangling while in use,
* Locking and unlocking of the cam with a single hand movement, even with gloves on, via the freelock system,
* Supplied with two oval OVX TG carabiners with triplex gate and anti-rotation elements,
* Equipped with an 8 mm EN 564 accessory cord.

Kit components:

* Double locking pulley UP-LOCK, designed for the creation of an auto-blocking rescue winch in combination with the UP ROLL pulley.

* Hot-forged light-alloy oval carabiner with reduced dimensions and triplex gate. Ideal for rope access work, work at height and rescue operations, in particular where space for manoeuvring is limited.

* Positioning device FIX-O that helps keep in position the connector inserted into the loop of a webbing or in the attachment point of a device (ex. attaching hole of a pulley)

* UP YOU GO ROPE GUIDE Rope guide accessory designed for the UP ROLL pulley.

* Positioning element FIXBAR used to hold the connector in the correct position when it is inserted into the sewn loop of a sling or in the connection point of a device (e.g. attachment hole in a pulley).

* UP YOU GO BAG
Replacement sleeve for the UP YOU GO hoist.
