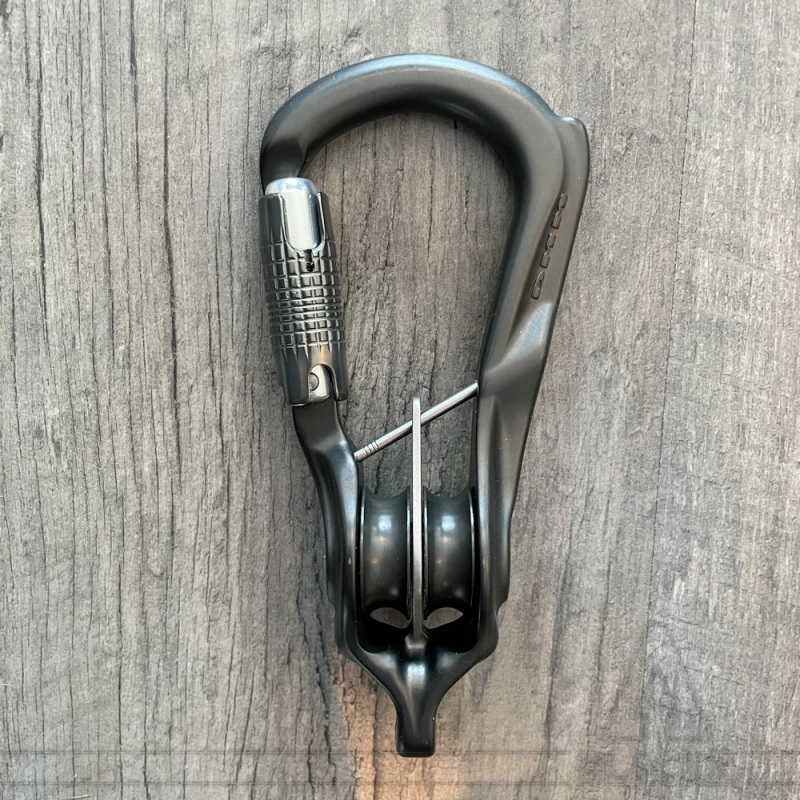

Black REVOLVER RIG TWIN LOCKSAFE

DMM "REVOLER RIG BLACK TL" - Triple action carabiner fitted with a double pulley.
This pulley is an evolution of their legendary Revolver carabiner.

It includes a single or double ball bearing pulley and a full strength becket.

This product benefits from DMM's amazing know-how in aluminum machining.
An absolutely extraordinary quality of realization!

SIMPLE version is also available at BlackZ.shop.

The REVOLVER RIG pulley from DMM Pro is a connector with an integrated pulley (single or double).

The REVOLVER RIG TWIN pulley includes:
* A double high efficiency roller bearing pulley
* Removable threaded captive bar
* A fully resistant and protective becket for textiles

The side of the carabiner unique profile over-thickness that keeps the pulley in the right orientation avoiding reversals.
Likewise, the captive bar helps keep the ropes in place in a correct position.

The becket is placed at 90° from the axis of the carabiner.
When using a connector attached to the becket, the friction between the connector and the rope is minimized.

This pulley is ideal for the realization of small mechanical advantages of assistance or rescue.

Two pulleys make it possible to compose a compact mechanical advantage such as the Rock Exotica AZTEK, the PETZL JAG SYSTEM or the DMM RPM Shackles & Components.

Features and benefits

* Large sheave tread diameter for large bend radius
* High efficiency roller bearings
* Full strength becket accepts most connectors or direct textile connection
* Removable captive bar
* DMM iD optional
* Keylock nose for snag free operation
* Uniquely profiled spine to aid correct orientation
* Locksafe triple action

Specifications

* Security: triple action
* Material: Aluminum
* Diameter of the sheaves: 31 mm
* Diameter of the rope: 5 to 8 mm
* Weight: 219 g
* Color: black and grey
* WLL: 500 daN (kg)
* MBS: 2500 daN (kg)
* Standrad: EN12278: 2007, EN362: 2004

Different Versions

This pulley also exists in other versions:

* Single or double sheave
* Screw locking device, autolock double action or quad-action
* All other versions are available within 3 weeks on request
