Pole for inverted rig - Clover

Steel post to create an inverted goal post rig from an aluminum truss.

 This device provides great modularity for installing acrobatic supports or large spreader bars which can be fitted with ball bearings for "SWINGING" apparatus: swinging trapeze, cloud swing, flying trapeze.

Intended for the practice of circus arts for professionals and circus schools.
They can also be used for flights effects and human lifting as part of shows as well as for stunts and special FX.

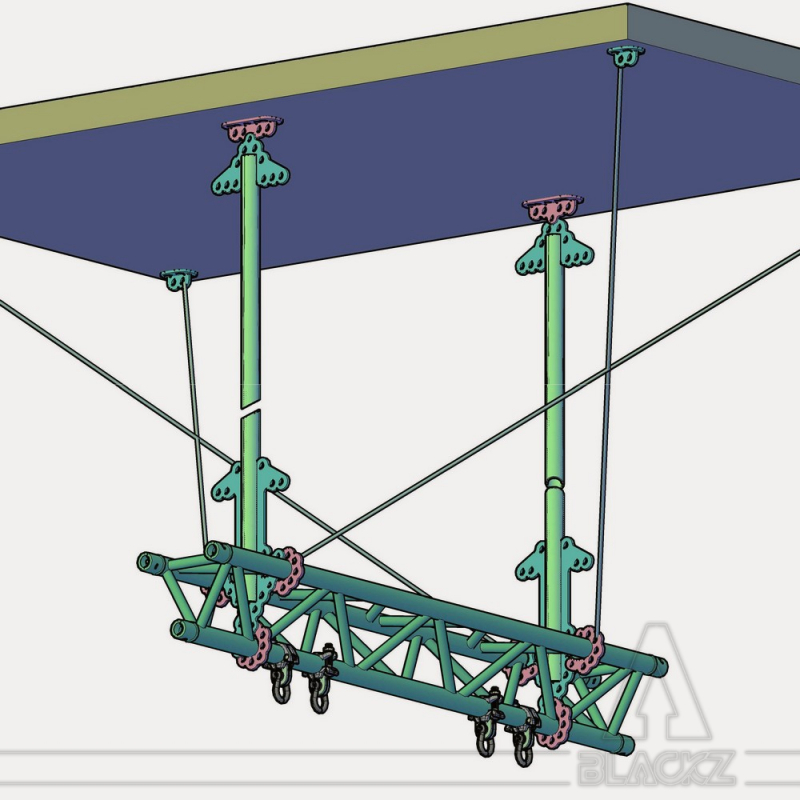

This principle of an inverted "goal post" rig spreader bar avoids the guylines in the lower part of the room and provides great compactness and great modularity.

Description

This simple, effective and robust solution of spreader bar is primarily intended for swinging trapeze techniques.

It contains suspension plates which allow the pulleys and lanyards to be deflected outside the trapeze route.

It adapts to many configurations and can accommodate commercial aluminum trusses (30 series, Prolyte, Sixty82, etc.).

The trapeze anchors can be made all along the beam using ball bearing clamp available separately.

This cloverleaf model connects to the aluminum truss by pivoting steel plates.

It can therefore be placed almost anywhere along the truss and offers numerous connection points for safety lines and accessories.

​Dimensions and adaptation

These products are usually custom made to the dimension requested by the client.

When ordering, it will therefore be important to specify the length of your posts and your possible list of additional products.

The price and indicated in an informative way, for a painted bar with a length of 1.50 m.

Depending on the length of the tubes, transport costs can be significant and will have to be assessed according to your request.

​Kit delivered

This kit contains only: A post, its cloverleaf system and its upper plate.

Specifications

* Color: Black - Painting baked by powder coating
* Working Coefficient: 4
* Complies with the guidance of acrobatic art and the Machinery Directive 2006-42-CE
* Axis of work: in the axis of the swing (see instructions)

Strength of the post at the attachment points: Per post:
* WLL: 2000 daN (kg)
* MBS: 8000 daN (kg)
May vary depending on ceiling strength and guyline tensions.

Resistance of the truss in the center for apparatus and lanyards:
* depending on the aluminum truss: WLL / WLL: 2000 daN (kg) in general

​Other options available

* Color: other colors or raw finish, on request
* Other anchor positions or other widths - on request

.
