Plates for steel Spreader Bar

Pair of SUSPENSION PLATES for steel GAP BAR.

They complete the spreader bar kit and are intended to raise the attachment points of the pulleys.

An original technique for deflecting the lanyards out of the way of the trapeze.

Description

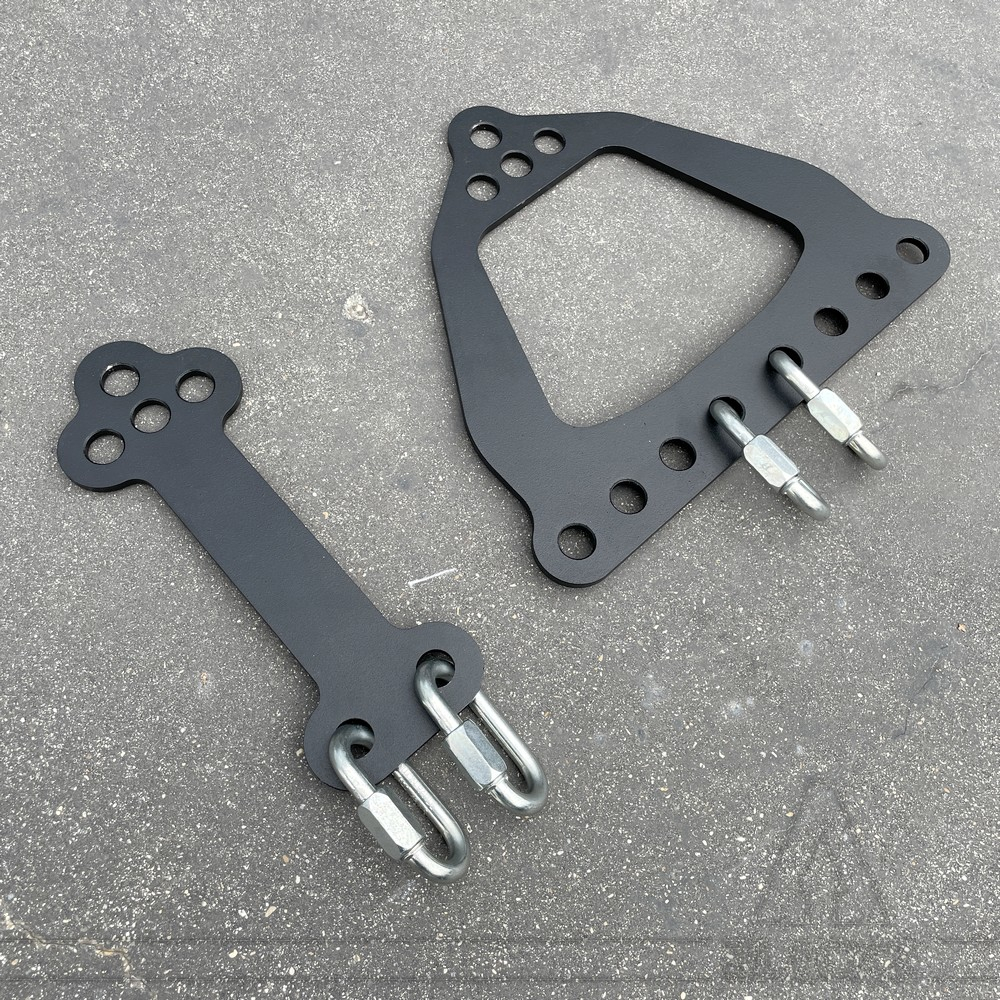

These plates are sold in pairs:
* A large one, intended to receive pulleys of maximum size 60 in the central part
* A narrow one, intended to make the lines symmetrical in length
* And accompanied by 4 normal galvanized size 9 quick links

They are designed to divert pulleys and lanyards out of the way of the trapeze.

Their purpose is to be able to raise the pulleys so that the swing of the trapeze is not in contact with the safety line and that the pulleys do not interfere with the suspension cables.

These steel plates lengthen the assembly by 275 mm and weigh around 2.3 kg with 4 x N 9 mm quick links.

They are articulated by the quick-links in order to orient themselves according to the angle of the suspensions, without forcing.

When storing and transporting, they fill properly along the bar.

​Details

The 17 mm holes are designed to accommodate :
* 50-60 mm diameter pulleys with 6-8 mm self-locking shackles.
* Easy management of suspension wires and guy lines angles.

​Kit delivered

This kit contains only: 2 plates and 4 quick-links

Option: RONSTAN CORE 60 pulleys

RONSTAN Core size 60 mm pulleys are available as an option by clicking below in related products.

The WICHARD 6 mm stainless steel bow shackles - self-locking 1/4 turn - for the CORE 60 - are available as an option by clicking below in the associated products.

Specifications

* Extension length: 277 mm
* Diameter of the holes for the shackles of the pulleys: 17 mm
* Compatible with 6 and 8 mm stainless shackles
* Color: Black - Painting baked by powder coating
* Working Coefficient: 4
* Complies with the guidance of acrobatic art and the Machinery Directive 2006-42-CE
* Weight: 2,3 kg with the quick-links

Resistance of the plate to the attachment points : by plate:
* WLL: 750 daN (kg)
* MBS: 1500 daN (kg)

.
