Steel Crane Bar for Static Trapeze

Acrobatic "SPREADER BAR" or "CRANE BAR" with 2 anchor points for static trapeze, aerial apparatus and acrobatic rigging.

Intended for the practice of circus arts for professionals and circus schools.
They can also be used for flights effects and human lifting as part of shows as well as for stunts and special FX.

This spreader bar brings good compactness and great modularity.

Description

This simple, effective and robust spreader bar is primarily intended for static trapeze techniques.

It is designed to be able to accommodate its optional suspension plates which allow the pulleys and lanyards to be deflected outside the trapeze route.

The anchors of the trapeze are made from steel plates.

​Details

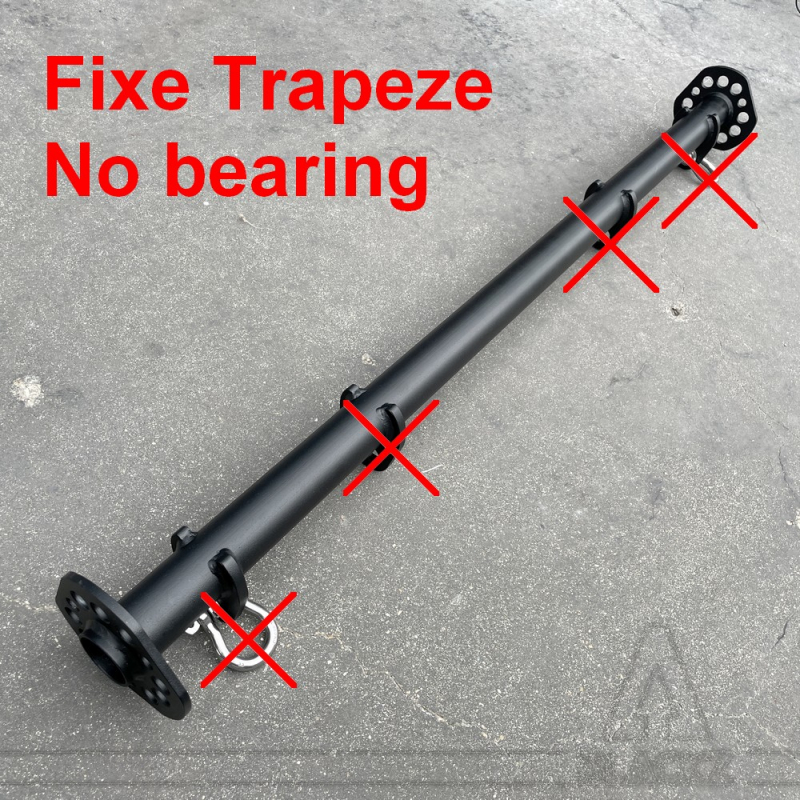

Same model as our swinging trapeze bar but without the central attachment points for the lanyards and without the ball bearing shackles.

​Kit delivered

This kit contains only: The spreader bar.

Option: Plates for pulleys

As an option, the spreader bar can be equipped with two suspension plates which allow better management of the axles of the safety lines and pulleys. Their purpose is to be able to raise the pulleys so that the swing of the trapeze is not in contact with the safety line and that the pulleys do not interfere with the suspension cables.

These steel plates lengthen the assembly by 275mm and weigh around 2.3kg with 4 x N 9mm quick links.

They are articulated by the quick-links in order to orient themselves according to the angle of the suspensions, without forcing.
When storing and transporting, they fill properly along the bar.

Option: RONSTAN CORE 60 pulleys

RONSTAN Core size 60 mm pulleys are available as an option by clicking below in related products.

The WICHARD 6 mm stainless steel bow shackles - self-locking 1/4 turn - for the CORE 60 - are available as an option by clicking below in the associated products.

Option: Guying system from above

Many mountings are possible by bolting the spreader bar to upward facing posts.

This avoids the guy lines down and frees up the acrobatic working space.

If you need a custom configuration, please contact us.

Specifications

* Length between axis of the shackles: 100 cm
* Overall length: 120 cm
* Tube Diameter: 48.3 mm
* Distance between the double safety lines : 500 mm
* Diameter of the holes for the shackles of the pulleys: 17 mm
* Compatible with 6 and 8 mm stainless shackles
* Color: Black - Painting baked by powder coating
* Working Coefficient: 4
* Complies with the guidance of acrobatic art and the Machinery Directive 2006-42-CE
* Axis of work: in the axis of the swing (see instructions)
* Weight: 5,5 kg

Resistance of the bar to the attachment points of the trapeze: For the set (2 points):
* WLL: 1500 daN (kg)
* MBS: 6000 daN (kg)

Resistance of the bar in the center for mono-longe (Per point):
* WLL: 1000 daN (kg)
* MBS: 4000 daN (kg)

​Other options available

* Color: other colors or raw finish, on request
* Other anchor positions or other widths - on request

.
