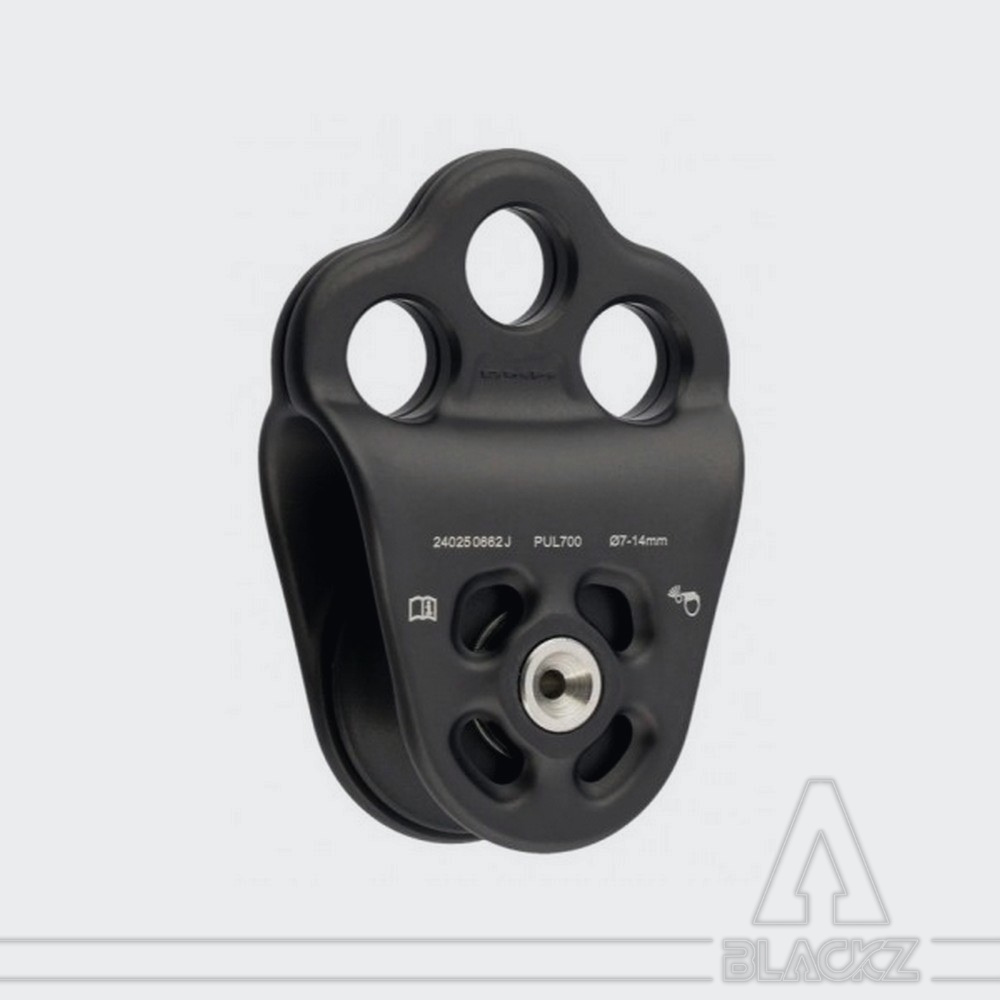

TRIPLE ATTACHMENT Pulley 2

... Just got better !
​​​​​Favourite of working at height professionals the world over.

The incredible quality of DMM construction in addition.

The triple-link pulley is an integral part of the renowned DMM "Hitch Climber System".

The updated design features sealed bearings in place of bushings, offering improved efficiency. Improving ease of use, the new U shape (rather than V shape) above the sheave increases volume. This means rope feeds in more easily when used in hitch climber system.

The three hole construction makes rigging and organising much simpler and allows for off-centre hanging to minimise rope to pulley friction.

Features

* Bushings have been replaced with sealed bearings, offering improved efficiency.
* Updated straight sides tend the hitch better.
* Extra volume in U shape rather than V shape above sheave means rope feeds in more easily when used in hitch climber system.
* Rigging plate helps organise single or multiple attachments.
​* Fairlead flares help maintain high working efficiency.
​* Compatible with most carabiner shapes and many textile connecting elements including rope and webbing.
* Size of attachment holes reduce probability of unwanted rotation of locking carabiners.
* Direct connection to textile components at the round edged attachment holes, helping to reduce system costs, increase lift height, minimise space required and enhance tolerance to torsion.
* Side plate shape allows an autoblock knot to function when the rope approaches the sides as well as at the bottom of the pulley.
* Tamperproof construction.

Specifications

* Dimensions: 94 x 68 x 33 mm
* Ropes up to 14 mm
* Material: Aluminum
* Extra light weight: 158 g
​* Sheave diametre: 60 mm
​* Color: Matte Black
* CMU / WLL: 600 daN (kg)
* CmR / MBS: 3000 daN (kg)
* Standards: EN 12278 : 2007

​
