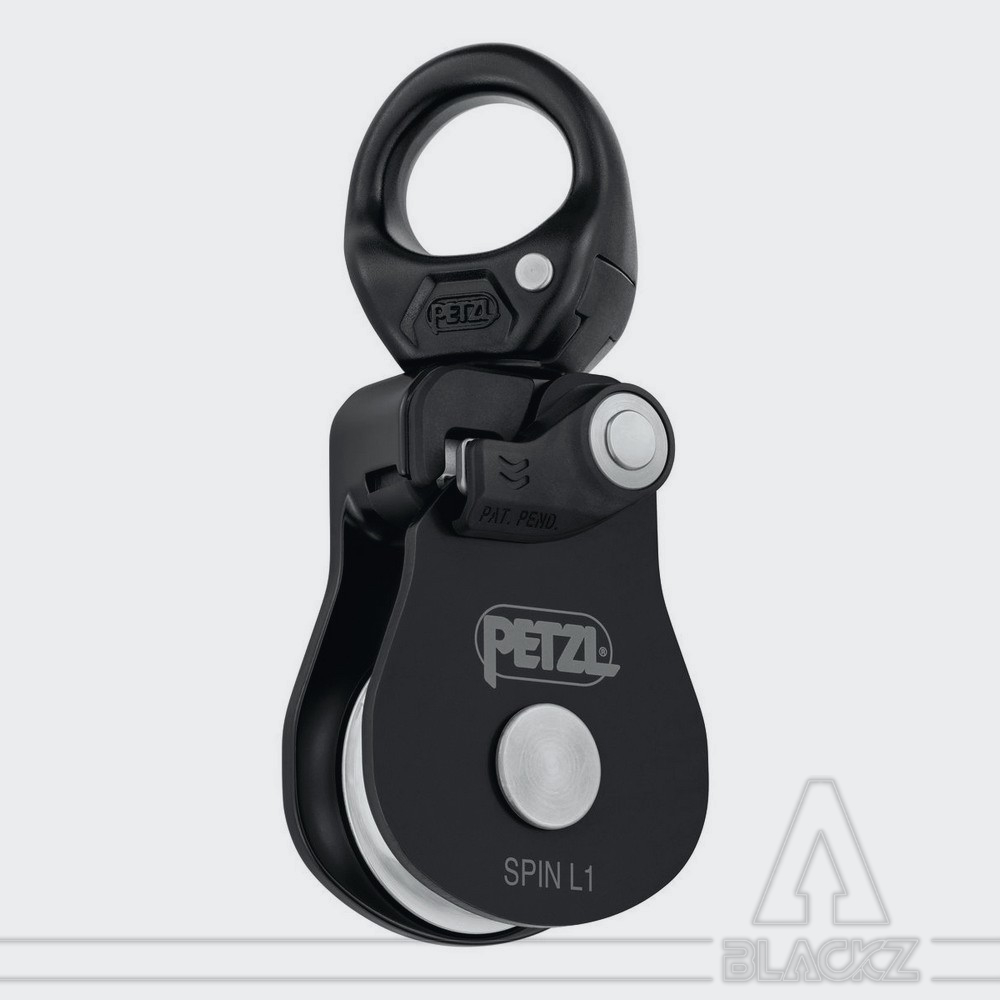

SPIN L1 Black

Openable even when attached to the anchor, the SPIN L1 pulley is designed for maximum simplicity in setting up hauling or load deviation systems, and tyroleans.

This model of SIZE LARGE (sheave 38 mm) also exists in small (25 mm).

The large diameter sheave mounted on sealed ball bearings gives it excellent efficiency.
The swivel facilitates handling, allowing the pulley to be oriented under load, and direct connection of carabiners, ropes or slings.
Triple-action opening of the moving side plate is quick and easy, even with gloves.
The rope can be installed with the device connected to the anchor.
The red mark provides a visual warning when the moving side plate is unlocked.
The swivel accepts up to three carabiners and allows the use of ropes and slings to facilitate maneuvers.

Description

Designed for maximum simplicity in setting up hauling or load deviation systems and tyroleans for work at height, rescue and tree care:
- triple-action opening of the moving side plate is quick and easy, even with gloves
- the rope can be installed with the device connected to the anchor.
- red mark provides a visual warning when the moving side plate is unlocked
- special side plate design protects the rope path

Optimal efficiency and easy handling:
- large diameter sheave mounted on sealed ball bearings for excellent efficiency
- swivel allows pulley to be oriented under load
- swivel accepts up to three carabiners and allows the use of ropes and slings to facilitate maneuvers.

Specifications

* Weight: 290 g
* Maximum working load: 4 x 2 = 8 kN
* Breaking strength: 36 kN
* Certification(s): CE EN 12278, NFPA 1983 Pulley General Use, UIAA
* Material(s): aluminum, stainless steel, nylon
* Min. rope diameter: 7 mm
* Max. rope diameter: 13 mm
* Sheave type: sealed ball bearings
* Sheave diameter: 38 mm
* Efficiency: 95 %
