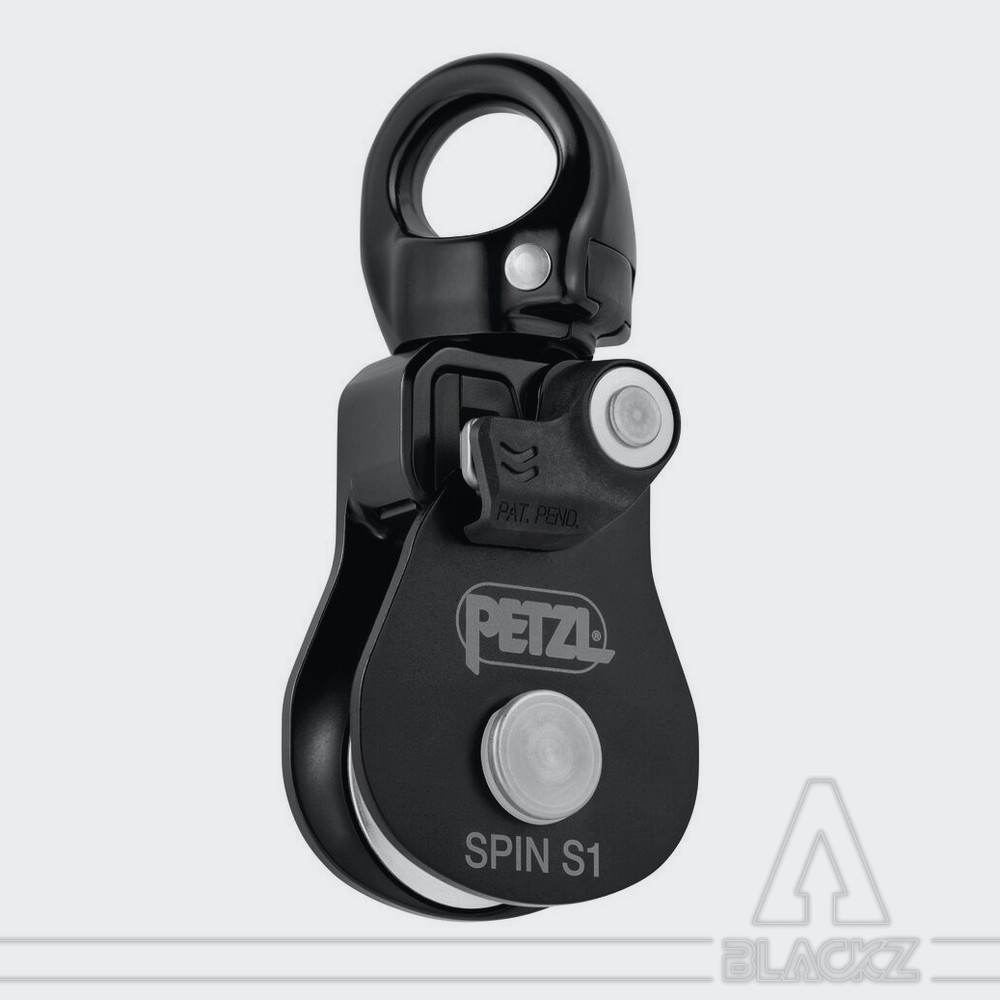

Black SPIN S1

Openable even when attached to the anchor, the SPIN S1 pulley is designed for maximum simplicity in setting up hauling or load deviation systems, and tyroleans.

Compact, reducing weight and bulk, which is especially useful during technical set ups.

This model of SIZE SMALL (sheave 25 mm) also exists in large (38 mm).

The sheave with sealed ball bearings provides excellent efficiency.
The swivel facilitates operations, allowing the pulley to be oriented under load and direct connection of carabiners, ropes, or slings.
Triple-action opening of the moving side plate is quick and easy, even with gloves.
The rope can be installed with the device connected to the anchor.
The red mark provides a visual warning when the moving side plate is unlocked.
The swivel accepts up to three carabiners and allows the use of ropes and slings to facilitate maneuvers.

Description

Compact pulley designed for maximum simplicity in setting up haul or load deviation systems and tensioned highlines for work at height and technical rescue, when weight and size are important factors:
- Triple-action opening of the moving side plate is quick and easy, even with gloves
- The rope can be installed with the device connected to the anchor
- Red indicator provides a visual warning when the moving side plate is unlocked
- Special side plate design protects the rope path

Optimal efficiency:
- Mid-size diameter sheave mounted on sealed ball bearings for great efficiency

Facilitates operations, thanks to the swivel:
- Allows pulley to be oriented under load
- Ropes or slings can be threaded for easier rigging
- Allows most carabiners to rotate, meeting European standards

Specifications

* Weight: 145 g
* Maximum working load: 2,5 x 2 = 5 kN
* Breaking strength: 23 kN
* Certification(s): CE EN 12278, NFPA 1983 Pulley Technical Use, UIAA
* Material(s): Aluminum, stainless steel, nylon
* Min. rope diameter: 7 mm
* Max. rope diameter: 11 mm
* Sheave type: Sealed Ball Bearings
* Sheave diameter: 25 mm
* Efficiency: 91 %
