Horizontal 4 Rings anchor plates 2/3

This multi-anchor plate has become a standard anchor for acrobatic use.

CATS Engineering has developed its range and today offers a multitude of combinations and variants.

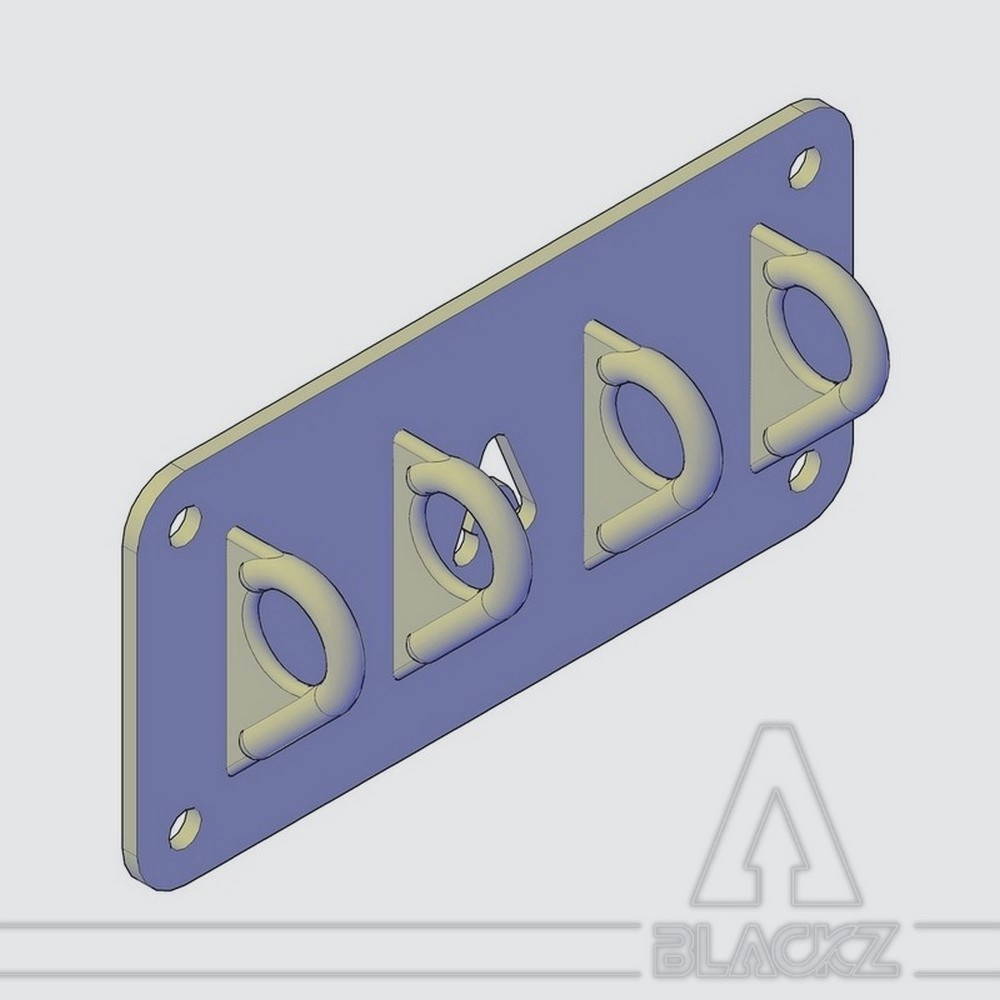

That anchor plate 2/3 is equipped with 4 fixed and parallel rings.
You can easily connect in the available rings or make half-keys around the cleat.

Other combinations are possible, do not hesitate to look at our catalog.

It is quite possible to make a plate according to your constraints.
Specific color on request. Thank you in this case to contact us by email.

Certified model for acrobatic use.

Characteristics :

Total WLL of the plate : 1 t maximum
WLL per ring : 500 kg
Material : Steel
Black color *
Width : 30 cm
Height : 15 cm
Thickness : 6 cm (incl. rings)
Orientation : horizontal

* Other color available on request, please contact us.

Spec :

Use anchor compoents suitable for the suport. Any doubt, contact a professional.
4 holes 14mm diameter must to be used to anchor the plate.
