This multi-anchor plate has become a standard anchor for acrobatic use.
CATS Engineering has developed its range and today offers a multitude of combinations and variants.

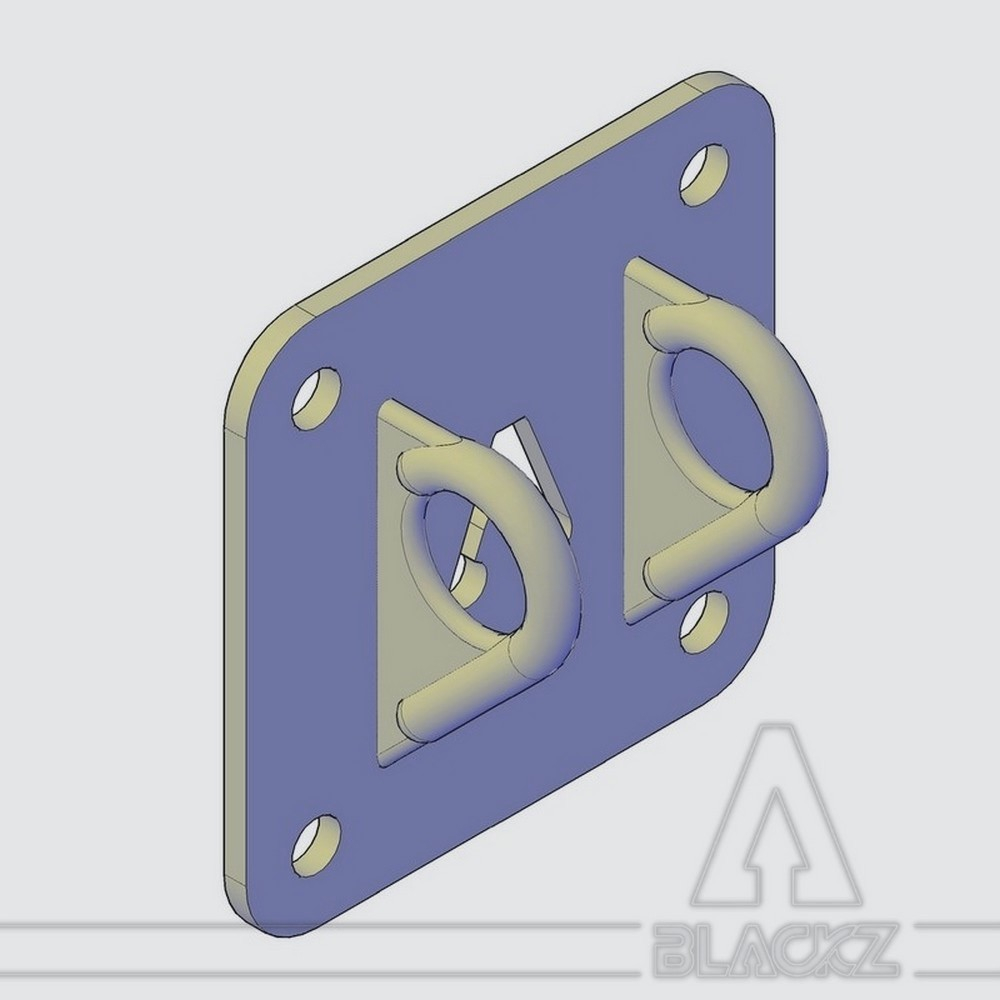

That anchor plate 1/3 is equipped with 2 fixed and parallel rings.
You can easily connect in the available rings.
Other combinations are possible, do not hesitate to look at our catalog.
It is quite possible to make a plate according to your constraints.
Specific color on request. Thank you in this case to contact us by email.
Certified model for acrobatic use.
Total WLL of the plate : 1 t maximum
WLL per ring : 500 kg
Material : Steel
Black color *
Width : 15 cm
Height : 15 cm
Thickness : 6 cm (incl. rings)
* Other color available on request, please contact us.
Use anchor compoents suitable for the suport. Any doubt, contact a professional.
4 holes 14mm diameter must to be used to anchor the plate.
| Width | 15 cm |
| Height | 15 cm |
| Thickness | 6 cm |
| Inside Ø | Ring : 31 mm |
| Screw Ø | Hole 14 mm |
| Size | 1/3 |
| Material | Acier |
| WLL | 500 kg/ring- 750kg total |
| Coefficient | 4 |
| Breaking load | 2 t/ring- 3t total |
| CE | YES |
| Color | Black |
| Manufacturer | CATS Engineering |
| Version | 2 vertical rings |
