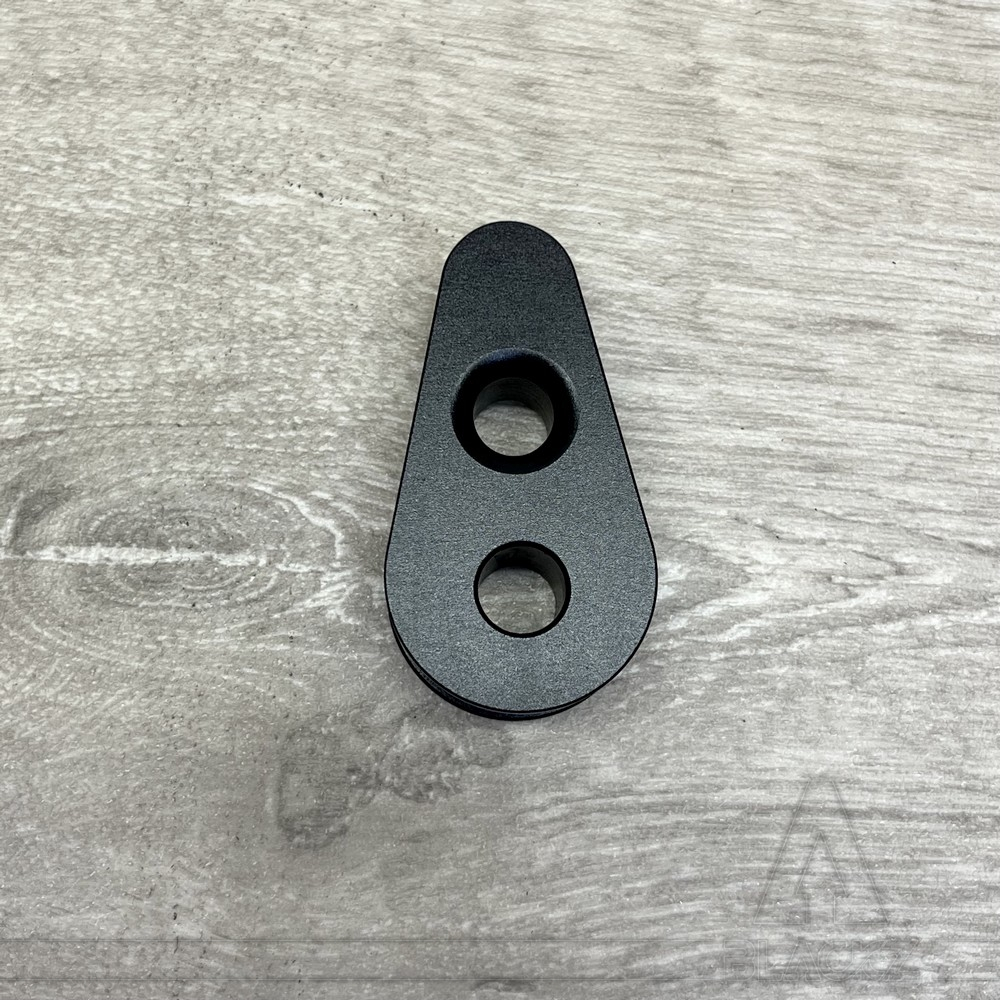

KF1.5 - 11 mm Thimble

Solid thimble for ropes up to 11 mm - KARVER.

With small central friction ring.

Description

This thimble is machined from a single piece of material to provide high resistance to deformation, even under extreme loads.

It allows the pin of an 8 mm shackle to be connected directly into the cylindrical hole with good positioning.

Its complementary rounded 8 mm hole can be used to create a reeving effect (friction ring) or to maintain the geometry of the assembly using lateral stabilisers.

This opening can also be used to forcibly approach the thimble via a mechanical advantage traction strand when connecting to the anchoring point. Similarly, when dismantled under tension, the hole can be used to take up the tensile force so that the shackle pin can be released.

Benefits

* Ultra-light yet extremely durable
* Wide range of uses
* Excellent performance
* Low friction thanks to its rounded shape and anodised finish
* Larger sizes available on request

Specifications

* MBS - Theoretical breaking load of the thimble : 3000 daN (kg)
* Length: xx mm
* Width: xx mm
* Rope: max 11 mm
* Thickness: 14 mm
* Weight: 20 g
* Material: machined 6082 aluminium
* Special treatment: 40µ hard anodising
