DMM NEXUS & FOCUS Swivels range are compact solutions to torsion management scenarios where maximising efficient use of limited space is crucial.
The Nexus range is a modular, directly connectable swivel system that delivers maximum freedom of movement to and from the device.
They can be used as a swivel between two connectors, textile elements, or a combination of both.

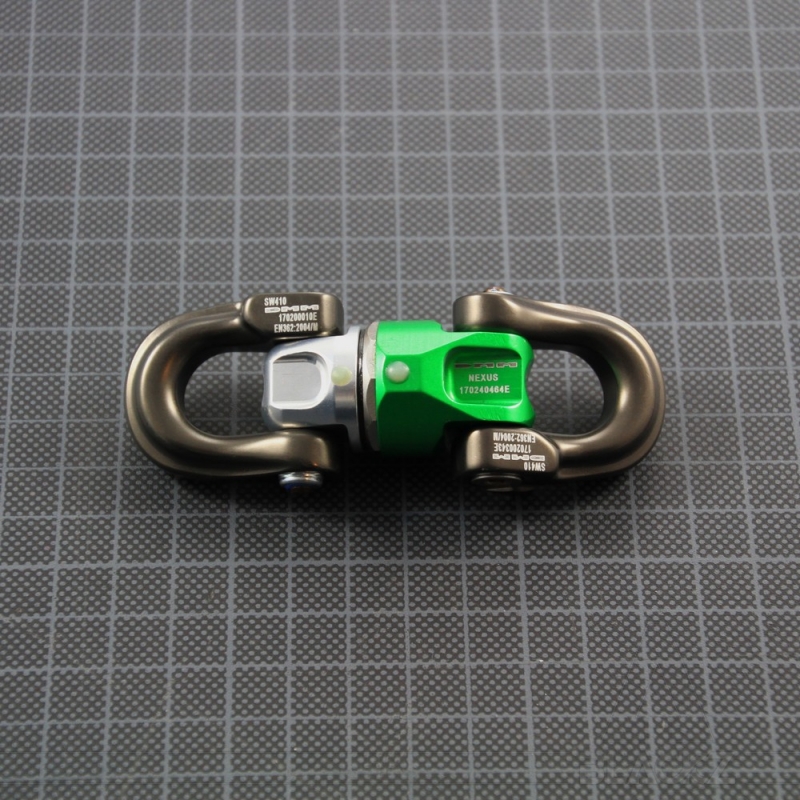

Model SW480: Gray and Green - NEXUS S-S also called NEXUS D to D.
Shackles can be swapped out at either end to give you a huge range of connection options to cater to the requirements of almost any torsion management scenario.
Fully retro-fittable, modular system allowing two connections to fixed points, connected with a high performance swivel.
The shackles themselves are connected by a high performance swivel that allows efficient torsion management.
Engineered to achieve high strengths and outstanding functionality using hot forged and CNC’d components, the NEXUS Swivel is perfect for use at junctions where torsion needs management.
Internally, a high quality bearing ensures smooth and reliable rotation.
Designed to optimise modern configurations, this range offers torsional tolerance in miniature form.
NEXUS 2 Swivel SW480 : Can be used as a swivel converter between two carabiners, or thanks to textile friendly radii, between a connector and a textile element.
Depending on the models considered:
* The rings without rubber are Ø16 mm and allow a quick link of 12
* The rings with rubber are Ø12 mm and allow a quick link of 9 (the rubber is removable)
* The small shackles are Ø16 mm and allow a quick link of 12
* The large shackles are 20 x 30 mm and allow two quick links of 12 or two carabiners
* User maintainable grease port for bearing longevity
* Double locking high tensile stainless steel axles for durability
* Roller thrust bearings for smooth efficiency
* High breaking load for such a compact product: 2600 kg
* Excellent rotation up to loads of 300 kg
* Mass is only 92 g
* Hot forged aluminium shackles and CNC’d swivels from aluminium
* Shackle uses 4 mm and 2 mm Allen keys to ensure secure locking
* Maximum Lifespan: no time limit
Mini R-R : SW400
Focus R-D : SW440 - aka Focus S
Focus R-B : SW450 - aka Focus L
Nexus D-B : SW470
Nexus D-D : SW480
Nexus B-B : SW490
R = Ring
D = D shackle
B = Bow shackle
DMM’s range of Compact Swivels allow torsion management in a compact form. These small, strong swivels reduce system height and help prevent twisted lines. The Mini Swivel features two fixed attachment points including a Prest-in configuration aid. The Focus and Nexus can be modified to suit specific applications. The range is suitable for any tree care, height safety, or rescue operation where torsion management and reduced system height are beneficial.
Torsion, or twisting, can occur almost anywhere in rigging. Typical torsion hotspots are remote anchor points, hauling systems, and at attachment points on harnesses. Torsion increases friction and reduces movement efficiency. It can lead to tangled ropes, resulting in jammed equipment, stuck personnel and even damaged equipment.
Our Compact Swivels can be applied anywhere torsion occurs to alleviate its effects. Doing so increases freedom of movement for any object attached to the Swivel. In hauling systems, Compact Swivels allow loads being hauled to spin without twisting and damaging the ropes. Attached to a harness, they makes it easier for the user to perform operations that require twisting, especially in multi-anchor systems.
Small is Beautiful
Increasing system height can put extra stress on the body by forcing users to reach further to do their job, or manage their system. The dimensions of the Compact Swivels give easier access to the task in hand.
Used in activities like confined space rescue or snatch rescue, they allow easier management of the casualty with less physical strain on the rescuer. The small stature of the Swivels does not compromise performance – they have a robust 3kN working load limit and 26kN minimum breaking strain, and feature roller thrust bearings that handle rotating loads with smooth, efficient action.
Multi-purpose and secure
Our Compact Swivel range reflects the fact that torsion can occur anywhere. The Focus and Nexus models feature interchangeable Shackles to suit specific applications. These Shackles attach to the swivel via a pivoting axle, increasing freedom of movement and helping the device orientate correctly when loaded. Security comes from a dual stage locking mechanism that guards against accidental opening.
The Shackles are available in D and Bow shapes. The D shape creates a stable connection with a single carabiner, helping it align in its strongest orientation. The Bow shape can handle multi-directional loading, and accommodates multiple knots or connectors. This is ideal when bringing several lines together at a central point.
Removable Shackles allow the Focus and Nexus to attach to fixed points such as solid eye anchors, sewn terminations and wire core flip lines. This opens up the possibilities of torsion management anywhere in a system. Shackles can also be replaced as they wear, saving the cost of replacing the entire swivel.
The Shackles are available as standalone products. They rate to 26kN, and conform to EN362:2004/M, making them lightweight and multifunctional connectors.
|Height||72 mm Internal Connection|
|Inside Ø||Ø 16 mm|
|Outside Ø||24 mm|
|Fonction(s)||Openable two sides|
|Openning size||Ø 16 mm|
|WLL||3 kN (DF 8.6)|
|Coefficient||8,6 : 1|
|Breaking load||2600 kg (26 kN)|
|Standard||EN 362 : 2004/M|
|Color||Gray & Green|
