Emerillon GYRO 4

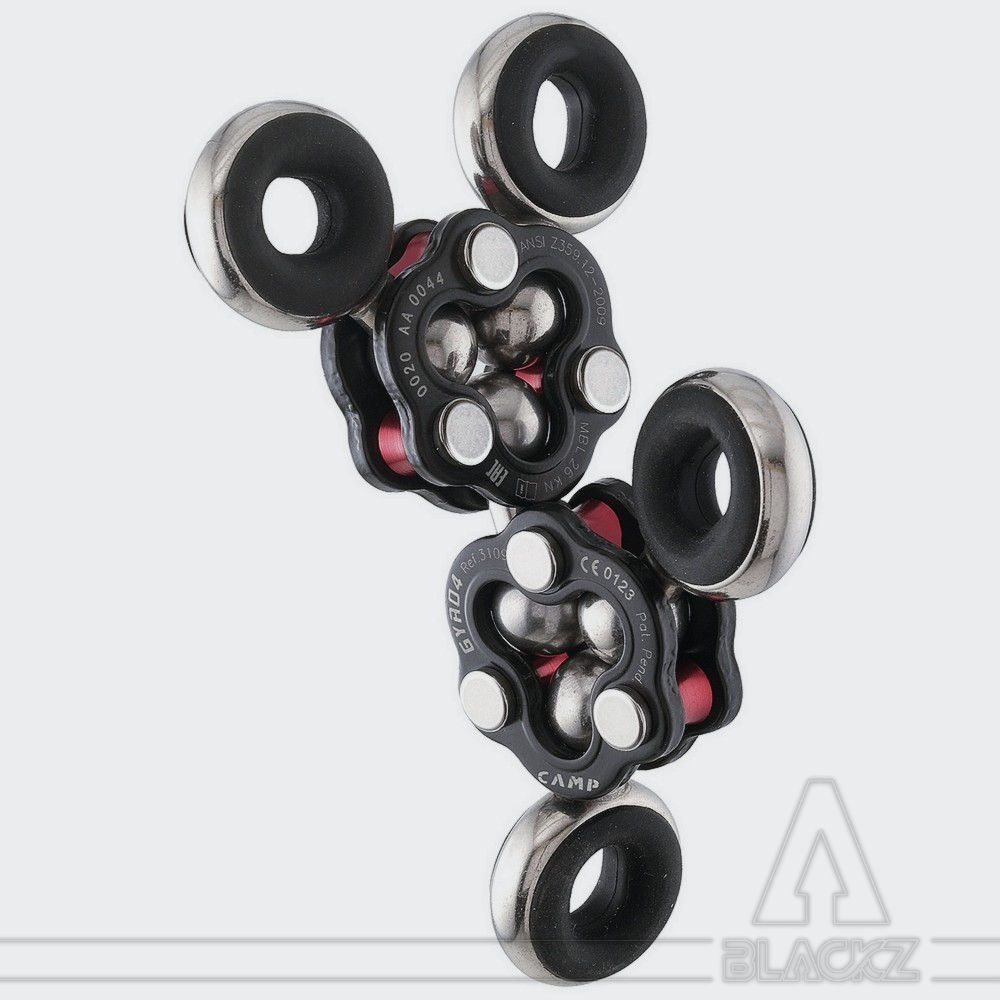

A revolutionary 3D swiveling rigging plate equipped with 4 connection points that rotate independently to allow them to be sel-oienting even in the most complex rigging scenarios.

The patented Gyro system allows for countless possibilities of connection between different elements that need freedom of movement.

The innovative design prevents the accumulation of dirt and makes inspections easier.

Main structural flanges are carbon steel with a double corosion preventive coating. Swivel balls and attachement points are stainless steel.

Includes four removeable silicon anti-rotation inserts.

Working load limit (3 kN) and minimum breaking strength (26 kN) are doubles when the two main bodies are oriented horizontally.

Specifications

* Minimum Breaking Strenght: 26 kN
* Working load limit : 300 kg
* Weight : 262 g
* Materials: Steel plates and stainless steel rings
* Holes diameter : 16 mm
