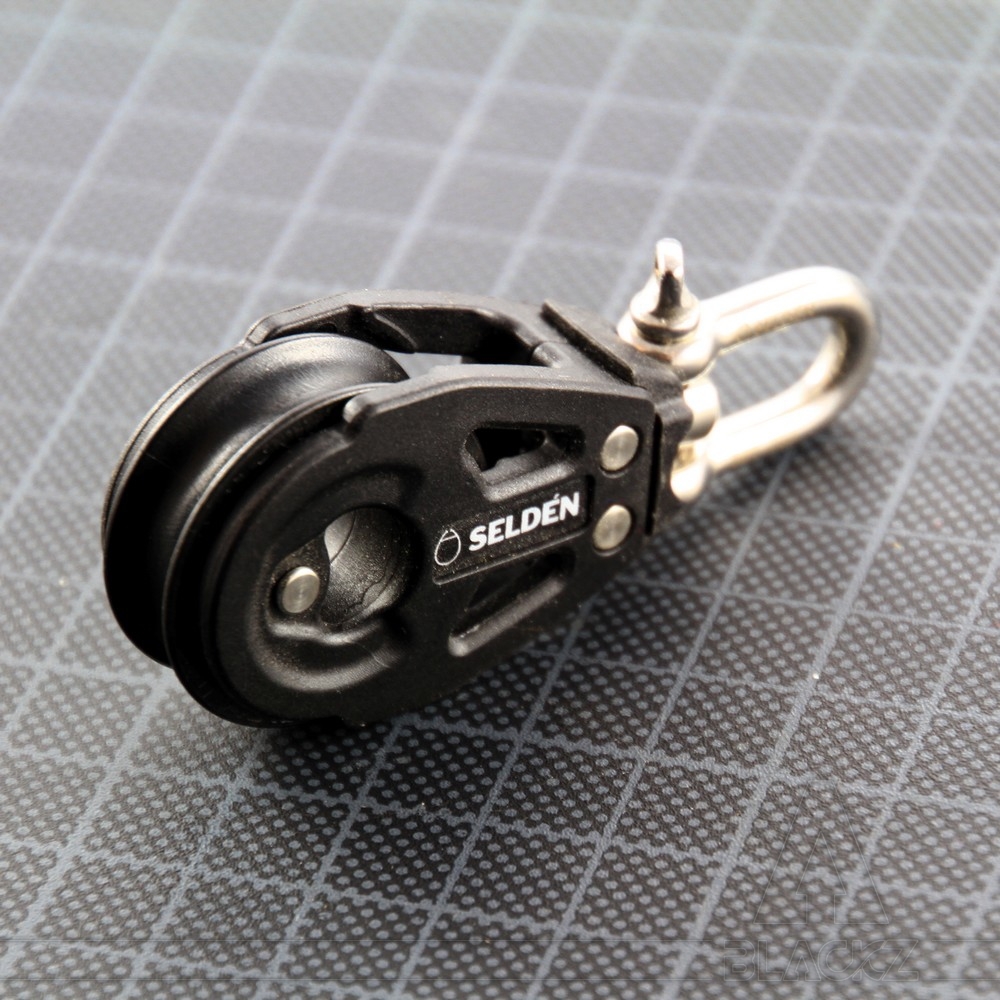

Very small pulley with a sheave of 30 mm diameter. Ideal for very small wires up to 8mm.
The small shackle allows the use of a connector (eg a quick link) with a diameter of up to 8mm.
The sheave of this pulley is mounted on a ball bearing which gives this mini pulley a very good efficient.
Ideal for very low loads.
Max Working Load: 200kg
Breaking load 400kg.
This pulley is not normalized for human lifting
| Width | 30 mm |
| Height | 47,5 mm |
| Thickness | 17.5 mm |
| Sheave Ø | 30 mm |
| Rope Ø | 8 mm max |
| Screw Ø | Shackle 4 mm |
| Load | 200 daN (kg) |
| Breaking load | 400 daN (kg) |
| Color | Black |
| Weight | 33 g |
| Manufacturer | Selden |
