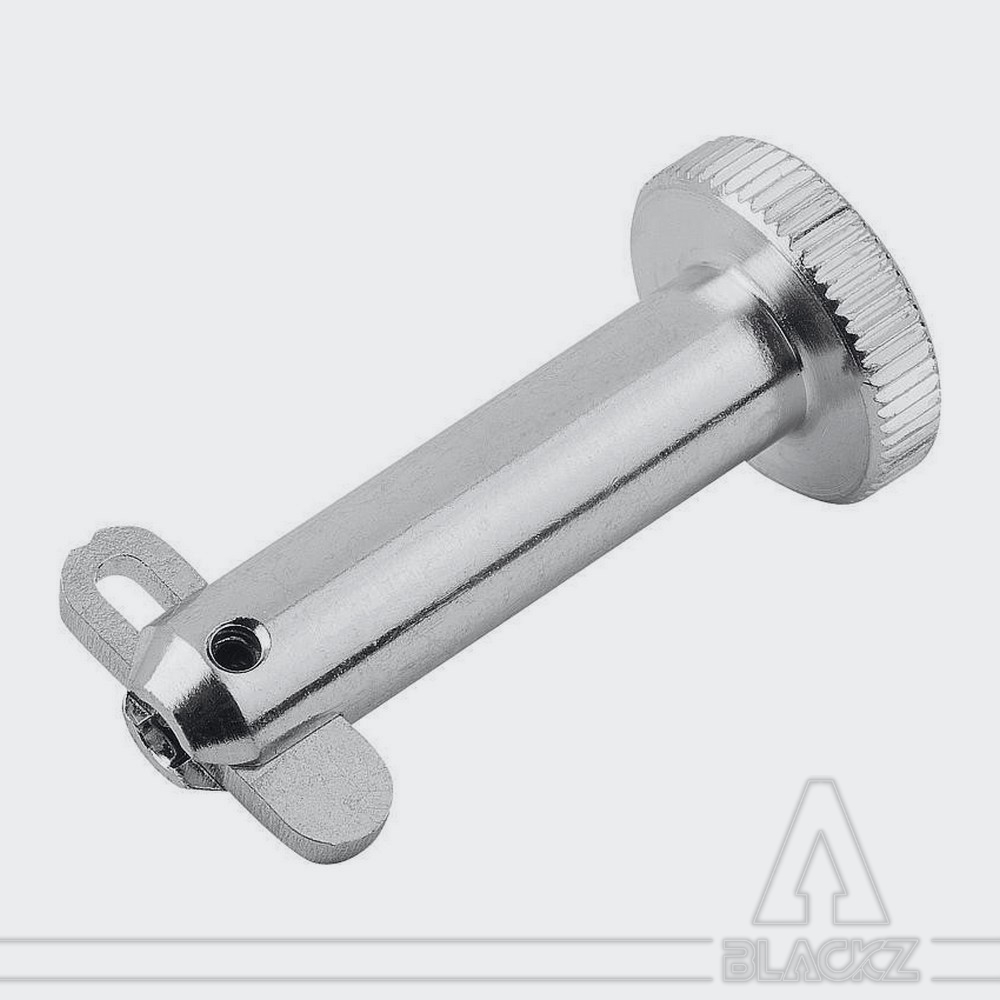

keeper pin axis 6-40 type 2

Locking pin with folding latch intended to serve as an keeper safety axis for our FlyingFX pulleys.

This swallow pulley safety pin prevents the flying wire from being able to escape out of the groove of the sheave and from getting stuck between the sheave and the cheeks.

TYPE 2 PIN for FLYING FX PULLEY SIZE M

This type of Locking pin with folding latch is intended to serve as an anti-ungrooving pin for pulley and entertainment flying effects applications.
By placing this pin as a safety pin outside the flight wires (textile or steel wire),
it prevents the small wires from being able to escape out of the groove of the sheave and from getting stuck between the sheave and the cheeks.

This function is particularly important when relaxed, when the wires are not tightened and the mass of the pulleys tends to bring them down.

Thanks to these groove safety pins and their precise nesting in the plastic back-cheeks,
the flight wires can no longer leave their position and are replaced correctly when the tension reappears in the system.

We offer these pins as a possible keeper pin option.

Specifications

 * Diameter: 6 mm
* Useful length: 40 mm
* Material: electro zinc-plated
* Automatic blocking system: by folding latch
* Head size: H 3 mm x Ø 12 mm
* Suitable for holes of: 6 to 6,5 mm
* Color: Silver
* Flexural and shear strength: 120 daN (kg)
