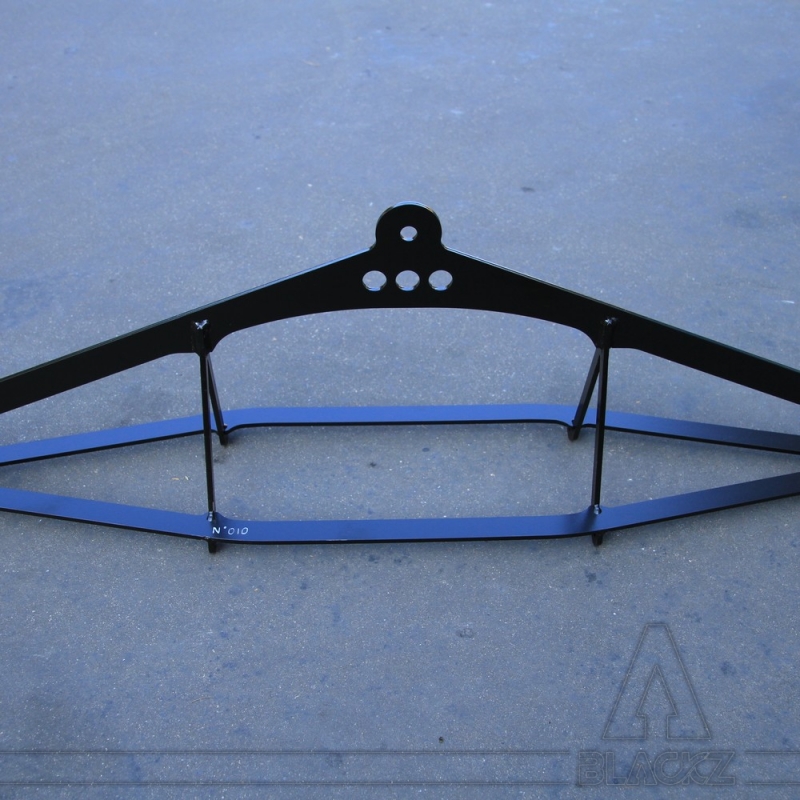

FlyingFX Hanger - Truss 90 MK2

Flying FX "Truss" Beam Coat Hanger - 90 cm MK2 - for a solo artist.

Model initially designed for artist flights in the Theater and Opera.

This Performer Flying Coat Hanger is specially designed for the needs of entertainmet and shows using a human or object flight effect.

For a 1-point vertical flight, this hanger, acting like a spreader bar, will allow you to convert your artist's suspension from a central point to 2 lateral points. The artist will thus be in a more comfortable position and will maintain more significant freedom of movement.

Depending on the width of the coat hanger, the side points are more or less spaced apart so that the lines going from the hanger towards the performer form a “V”.
- Either to allow freedom of movement to the shoulders and front-back rotations
- Either to block the lines in the back at the level of the shoulder blades

Individual serial number engraved on each model.

Designed and manufactured in France.

Use

The hole (diameter 11 mm) at the head of the flight hanger is specially designed to accommodate a ROCK EXOTICA Schakle Swivel. Provide a few washers to position the hanger in the center of the swivel.
If you don't want to use this head swivel, you can always use a suitable connector. Then prefer a steel model. The sharp edges of the hole are aggressive and damaging to the connector - especially in aluminum. In this case, it is advisable to break the sharp corners of the hole by 1 mm with a 45° conical drill.

Be sure to use appropriate equipment for your performer flying application; if necessary, seek advice from specialists.

It is recommended to use a specific harness for human flyingFX. See in our Acrobatic belt and harness category.

Store in a ventilated place.

Inspect every year according to PPE standards.

Specifications

* Version: Solo (1 artist)
* Material: steel
* Color: Black (other color on request)
* WLL: 250 kg
* Working Coefficient: 10
* Rupture: greater than 2500 daN (kg)
* Energy absorber: Yes - from 500 daN (kg)
* Plastic deformation: Yes - from 500 daN (kg)
* Overall width: 95 cm
* Overall height: 24.5 cm
* Overall thickness: 15 cm
* Spacing of side points: exterior 90 cm / interior 85 cm
* Height lost between the top point and the side points: 20 cm

* Standards: Complies with US ANSI E.1.43 and UK BSR E1.4-3 standards "Entertainment Technology - Performer Flying Systems".
* Compliance with the rules of the art: due to its adapted design, this bar meets the rules of the art known in terms of flying effects and lifting of persons in the context of entertainment

Sold alone, without connector or swivel.

DUO FlyingFX Coat hanger version possible, contact us.
