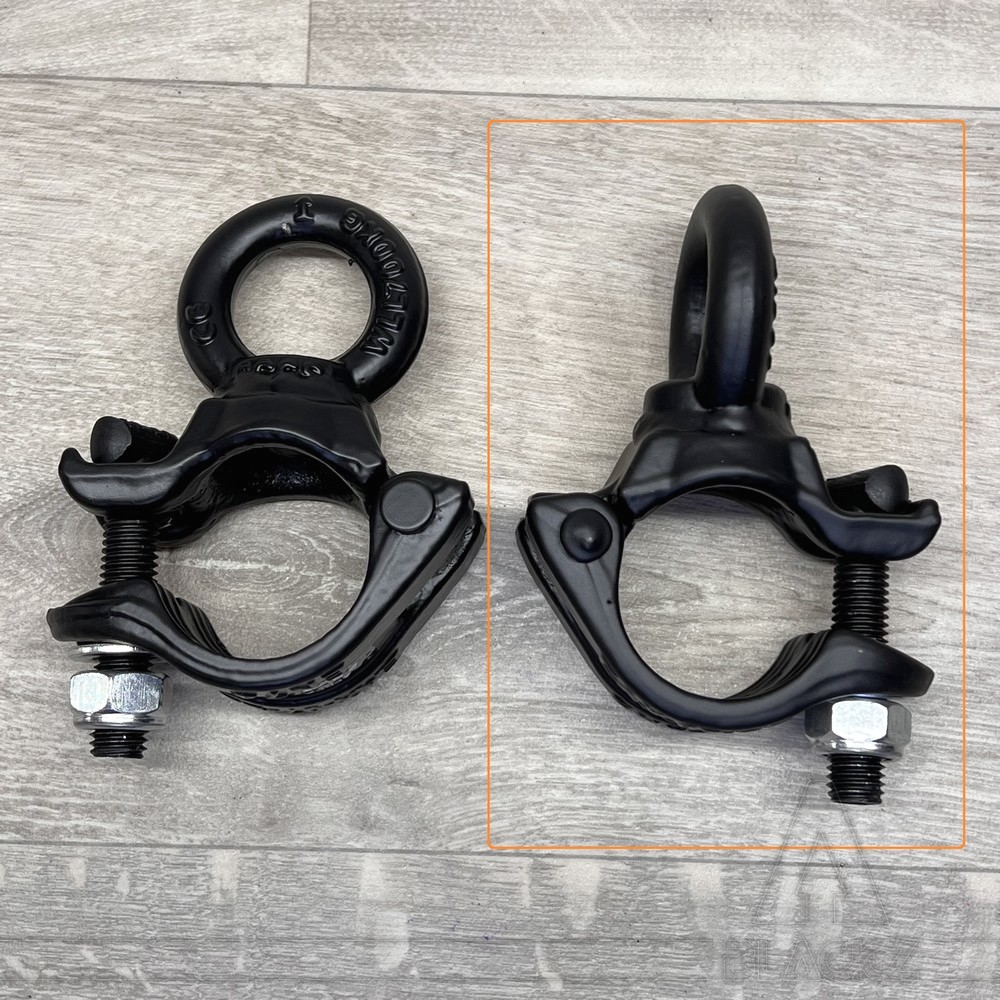

Acrobatic Rigging Clamp with 90° Rotatingnring anchor - 50 mm

Simple acrobatic "Cheeseborough" with a 90° angled ring for aerial apparatus and acrobatic rigging.

Intended for the practice of circus arts for professionals and circus schools.
They can also be used for flights effects and human lifting as part of shows as well as for stunts and special FX.

Thanks to its simplicity of use and quality of manufacture, this product is the reference anchor point for circus schools.

Description

A simple acrobatic collar with a straight, welded ring rotated 90° so that it runs parallel to the yard.
Intended for the rigging of aerial equipment (Corde lisse, Aerial fabrics, tissue, silk, trapezes, aerial hoops, lyras, etc.) but also safety lanyards and pulley deviation systems.
These clamps are compatible with standard steel tubes and scaffolding pipes (48.3 mm). They are also compatible with the aluminum tubes of the usual light bridges trusses.

Specifications

* Nominal tube diameter: 48,3 mm
* Color: Black
* WLL: 625 daN (kg)
* MBS: 2500 daN (kg)
* Design Factor: 4
* Work axis: in the axis of the ring (see instructions)
* Possibility of rigging pulleys: Yes (see instructions)

​Other options available on request

* Other tube diameters: 34, 60 or 76 mm
* Color: other colors or raw finish
* Inverted ring direction: ring in the direction of the tube

* Also available with ball bearing for swinging apparatus : Acrobatic Rigging Clamp with ball bearing
