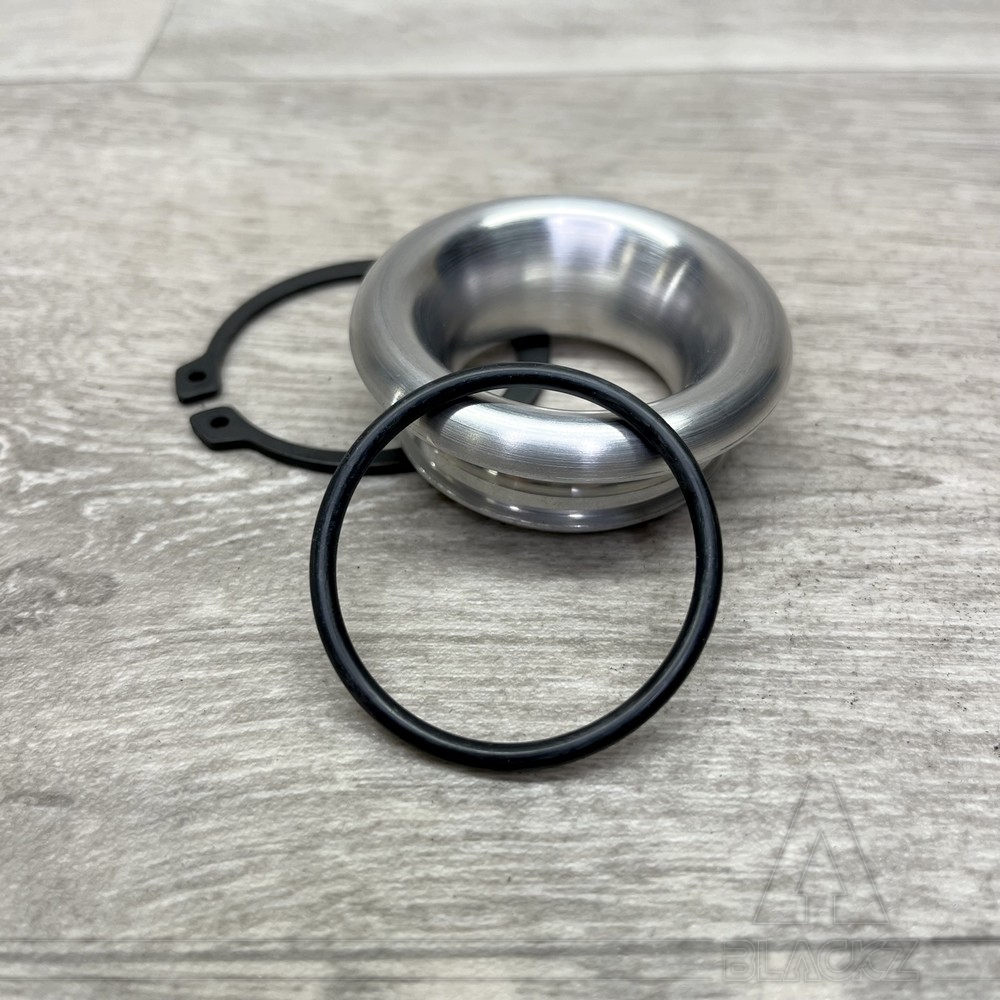

Half Donut silver

Half Donut for synthetic fiber protection, creating a friction ring.

Its half-donut structure and 49 mm outer diameter allow it to be mounted in aluminum or steel tubes clamps.

An ingenious CirClip washer system also allows it to be mounted in a plate.

Ingenious half-donut that can be easily mounted in clamps (possibly in pairs) and in plates up to 10 mm thick. Ideal for innovating and improving your string systems.

Description

Guiding and protecting ropes is not always easy in confined or harsh environments.

Commercially available pulleys and friction rings offer good solutions but do not allow the rope to be guided through a plate or create a rigid attachment along a tube or a truss.

Our innovative Half-Donut solution provides a complementary technical response that has been specifically designed and optimized for the entertainment and stunt industries:

1. Their shape and outer diameter are designed so that they can be mounted directly in standard tube clamps (scaffolding clamps or aluminum clamps used in the events industry), giving you unique creativity and responsiveness on site, directly with the resources at your disposal.

2. To improve the grip in the clamps:
- A specially designed outer surface creates grip in cast iron scaffolding clamps.
- A slot for a rubber O-ring (supplied) creates grip in aluminum clamps (Doughty, etc.).

3. As a half-donut, you only need to use two pieces to fit a clamp at both ends. The 14.5 mm width allows two to be placed back-to-back in a 30 mm wide aluminum clamp.

4. Even without using two pieces, the rounded curvature at the entrance and exit of the Half Donut provides good protection for the rope on both sides.

5. An ingenious Circlip washer system (included) expands the range of uses by allowing you to place the Half Donut in a plate of your choice (wood, aluminum, steel, plastic, etc.), making it easy to create a guide through a partition or floor.

6. The guide function in a plate protects ropes from grating floors or other aggressive metal parts.

7. The friction ring function, installed in a rigid and solid manner, allows the acrobat or stuntman to perform swings or conical rotations from a solid fixed point that effectively guides and protects the rope.

8. In circumstances where ropes are exposed to heat sources or poor geometry, adding Half Donuts allows them to be guided precisely according to the desired direction and prevents them from getting caught on obstacles

In short, whatever your activities, having Half Donuts in your kit allows you to adapt quickly to circumstances and difficulties, directly on site and with the means at hand.

Benefits

* Low friction thanks to its highly rounded shape on both sides
* Very generous 20 mm radius of curvature in the rope contact area
* Ultra-functional, solves various rope guidance problems directly on site
* Numerous possible uses: in clamps or plates
* Numerous innovations possible from a simple wooden plate
* Excellent level of rope protection

Specifications

* MBS - Theoretical breaking load of the ring: 4000 daN (kg)
(Depending on the strength of the supports used)
* Total outer diameter: 59 mm
* Outer diameter entering the clamps : 49 mm
* Fits correctly on clamps from 48 to 51 mm
* Fits correctly in holes from 49 to 50 mm
* Inner diameter: 32 mm
* Total height: 20.5 mm
* Height engaged in the clamps : 14.5 mm
* One pair fits correctly on clamps from 30 to 50 mm wide
* Recommended for use with rope thicknesses of 1 to 24 mm
* Equipped with a groove for a 2 mm circlip
* Fitted with a rubber O-ring to increase grip in aluminum clamps
* Weight: 60 g
* Material: Machined aluminum
