Connecting plate for CATSpallet

Accessories for pallet for stage ballast - Connecting plate

Description

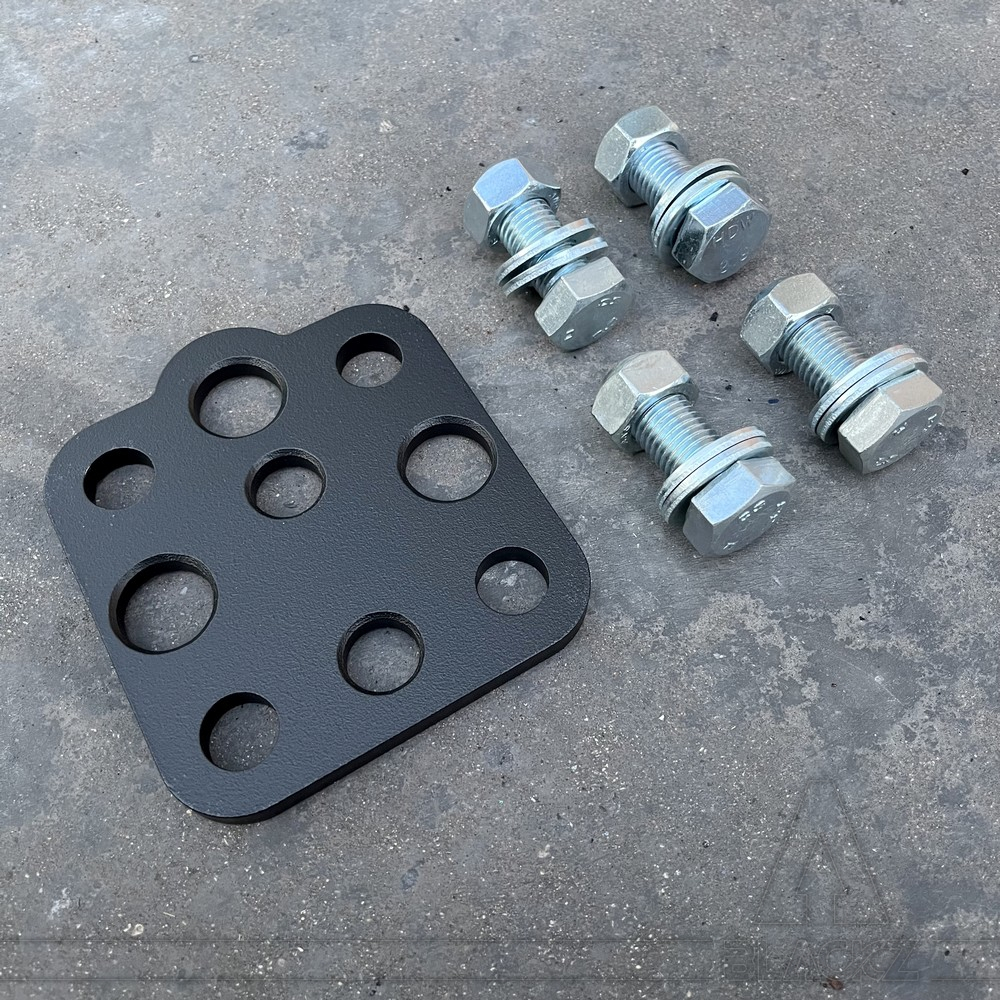

This connecting plate, supplied with four M16 x 45 bolts with lock nuts, is designed to connect pallets sideways to form a larger, more stable unit.

* Two half-pallets can be connected back-to-back using ten M12 x 30 bolts, without the need for a plate.
* Two pallets or half-pallets can also be connected by their sides: using 2 to 5 connecting plates.

If you want to increase the traction capacity before slipping, two connecting plates are usually sufficient.
If you want to form a rigid block for vertical pulling: use 4 to 5 connecting plates, one on each possible position.

Full pallets can be connected to each other:
* Either by their long side: example: 2 x 1200 x 800 = a surface area of 1200 x 1600 mm
* Or by their short side: example: 2 x 1200 x 800 = a surface area of 2400 x 800 mm

If necessary, half pallets can also be connected to each other:
* By their short side: example: 2 x 600 x 800 = a surface area of 1200 x 800 mm
To form a shallow assembly, for example.

WLL

This connecting plate has a 22 mm center hole that can be used as an anchor point.
Its WLL capacity is 2000 kg.
