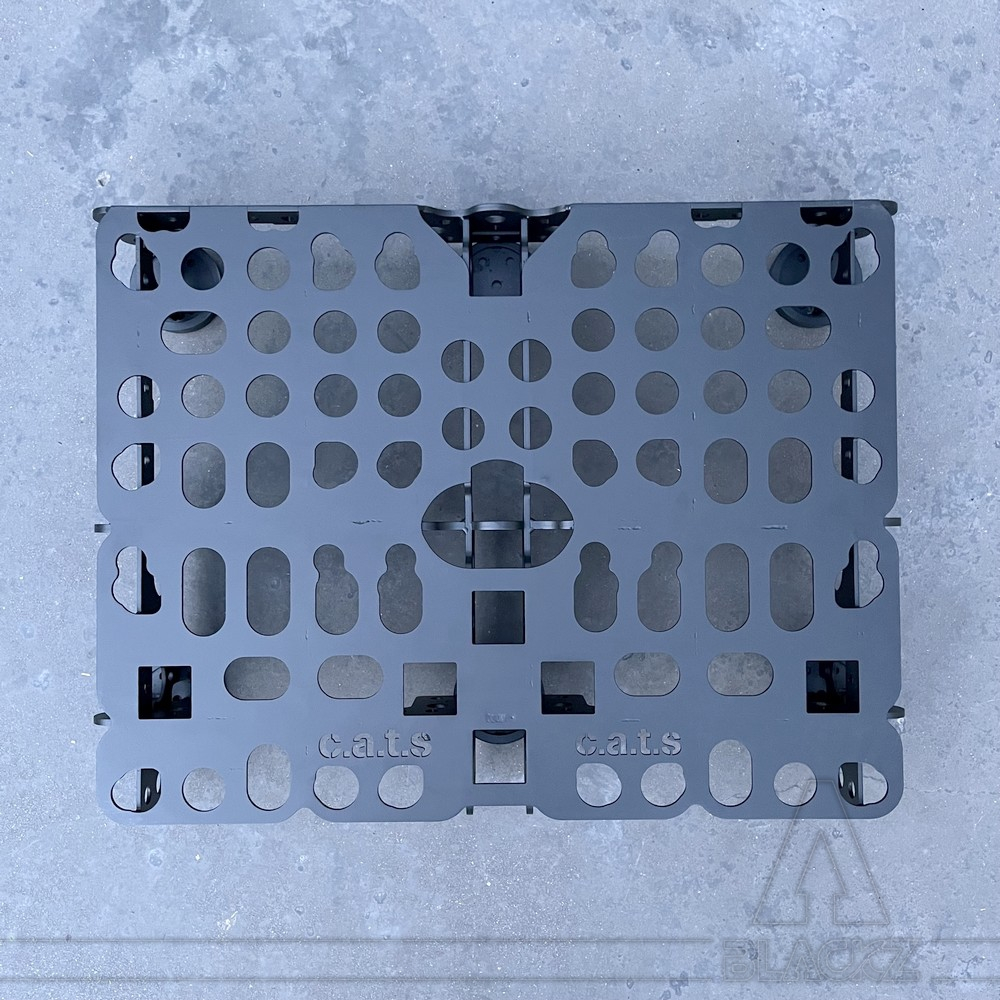

CATSpallet_0600

Half pallet for stage ballast - 600 x 800 - WLL 1500 kg.

Designed to hold various types of ballast: cast iron, steel blocks, concrete, sandbags, stone blocks, etc.

Optimized for T-250 or T-304. type cast iron counterweight blocks.

Can accommodate direct anchors and extension tubes.

For large quantities and international shipments of cast iron blocks, please contact us to check rates, delivery times and stock levels.

Reduced price from 4 half pallet : - 5 %

Reduced price from 8 half pallet : - 10 %

The discount will appear in your basket.

These products, available in full Euro pallets (1200 x 800 mm) or half pallets (600 x 800 mm), are sold in half pallets so that you can configure your own quantities.

Description

These ballast and anchoring pallets are designed to replace other types of ballast anchors (concrete blocks, water tanks, wooden pallets, etc.) for temporary ground anchoring when mechanical anchors or anchor clamps cannot be used.

Compared to other improvised solutions, these pallets offer the advantage of a reliable, practical, modular, and certified technical product specifically designed and optimized for these needs.

Advantages

They offer the following advantages and features:

* Solid, rigid steel base, fully welded
* Can be picked up by lifting equipment forks on all 4 sides (full pallet)
* Modular in 120 x 80 cm “European” pallets and 60 x 80 cm half-pallets
* Easy to store on edge or stack if necessary
* Fitted with rubber pads for anti-slip effect
* Fitted with connection holes for hooks in all sides and on the top surface
* Optimized to hold high-density cast iron blocks (type T-250 or T-304)
* Can hold up to 3000 kg of ballast for a full pallet, 1500 kg for a half pallet,
* Compatible with all types of ballast (bags, blocks, theater blocks, etc.)
* Equipped with clearance areas for ratchet straps to secure ballast
* Equipped with 52 x 52 mm square holes to accommodate vertical square posts
* Equipped with round 42 and 52 mm holes to accommodate metal extension horizontal bars
* Equipped with 22 mm holes to accommodate 3250 kg shackles in the central area and at the sides
* Can be assembled by bolting half pallets together to form a full pallet
* Can be assembled using plates and bolts between pallets to form large assemblies

Destination

These pallets and associated product families are designed to create temporary ground anchors for the following purposes:

* Load lifting
* Return of theater machinery controls or flying FX systems
* Return of apparatus for attaching acrobatic apparatus or lanyards
* Bracing (guy lines) of sets, structures, poles, portiques, rig or acrobatic apparatus

Due to their design, they are primarily intended for use in the entertainment industry (shows and events), but may also be used in other related fields (exhibitions, fashion shows, sporting events, museum displays, etc.).

These pallets are designed to remain stationary, on the ground or on a generally horizontal and flat support.
They must not be used in the air for lifting or load testing with the load lifted off the ground.

Use and WLL

These pallets are equipped with numerous connection holes on the sides and top.

The WLL capacities of these anchor points range from 750 kg to 2500 kg depending on the points, steel thicknesses, and pull angles.

See the diagrams attached to the product photos for more information.

The pallets are delivered with a complete user manual that details the possibilities and provides examples of loading and pulling.

Regardless of the type of use, spaces have been provided for ratchet straps to pass through, allowing you to securely fasten your ballast to the pallet.

Sliding

The pallet's stability against sliding is optimized by the presence of rubber pads.

If necessary, it can also be secured by a load transfer link placed at the rear of the traction axis.

The slip coefficient (friction) generally obtained on flat, clean ground is 0.6. Which means that a pallet loaded with 1000 kg with ballast allows a maximum horizontal force of 600 kg before slipping.

These parameters will of course vary from one use to another, depending on the nature of the ground.

Specifications

* Overall external dimensions: 600 x 800 x 143 mm
* Empty weight: 27 kg
* Forklift transportable: On two sides for half pallets, on four sides for full pallets
* Maximum load: all types of material: Half pallet: 1500 kg ballast
* Maximum load: all types of material: Full pallet: 3000 kg ballast
* A half pallet can hold 6 blocks per level
* A full pallet can hold 12 blocks per level
* Connection holes: dimensions: 17 to 22 mm
* Connection holes: WLL: 750 to 1500 kg on a half pallet
* Connection holes: WLL: 750 to 2500 kg on a full pallet
* Material: Powder-coated steel
* Color: Black (other colors available on request at the time of ordering)
* Certification: CE as lifting base according to the Machinery Directive 2006-42
* Made in France
