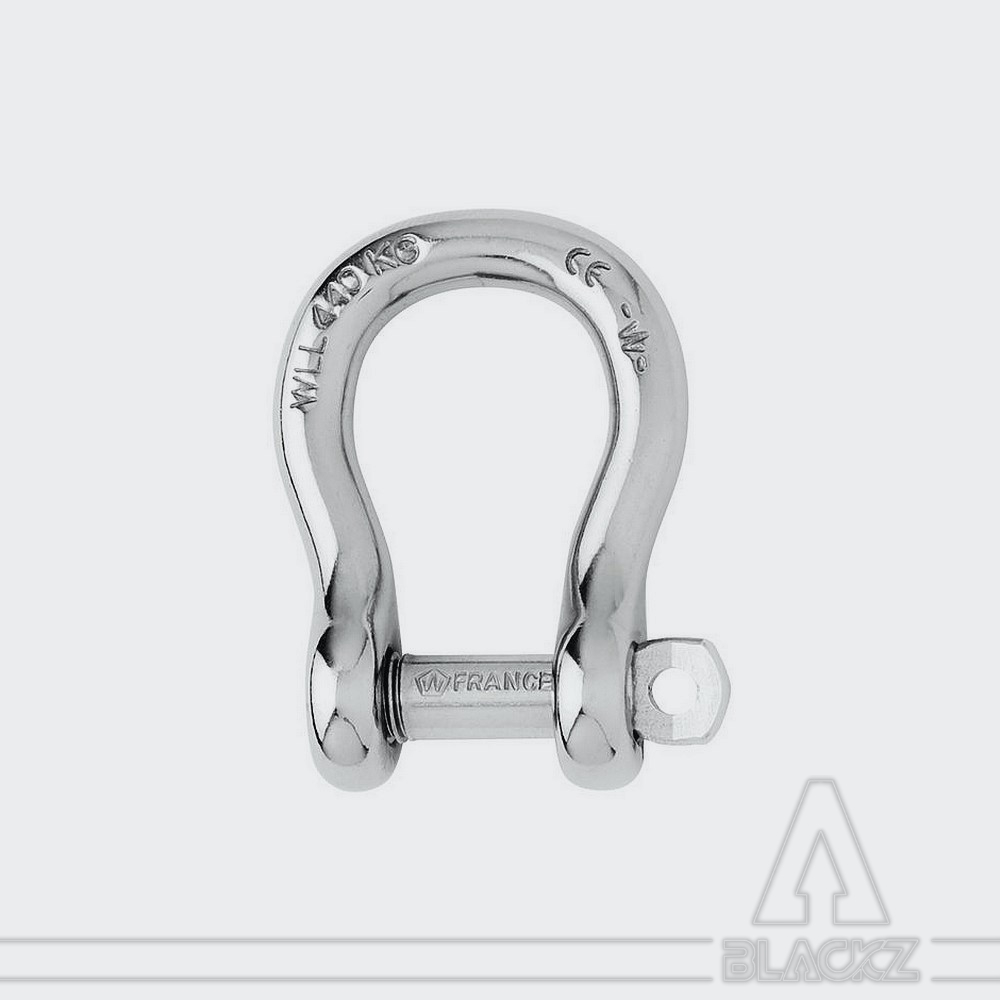

Captive pin bow 6 mm

Captive pin bow shackle forged in grade 316L stainless steel diameter 6 mm

Description

* Captive pin bow shackle forged in grade 316L stainless steel
* The pin is connected to the body at all times even when opened
* Outstanding working and breaking loads
* Single handed operation for more safety

WLL: only for industrial applications (lifting i.e…) CE marking and batch number

Applications

Connecting between two components, industrial lifting. Stainless steel shackles are used to connect or several accessories. Perfect solution for aggressive environments (industrial, marine, acid atmopsheres).

To be used when ample room is required

Possibility to attach several lines or cables

Specifications

* Materials : Inox 316L
* Working load (nautical applications) : 600 kg
* WLL : 440 kg
* Breaking load : 2200 kg
* Weight : 33 g
* A : 27 mm
* B : 12 mm
* C : 7 mm
* D : 14 mm
* D diameter : 6 mm
* E : 6 mm
* M : 31 mm
