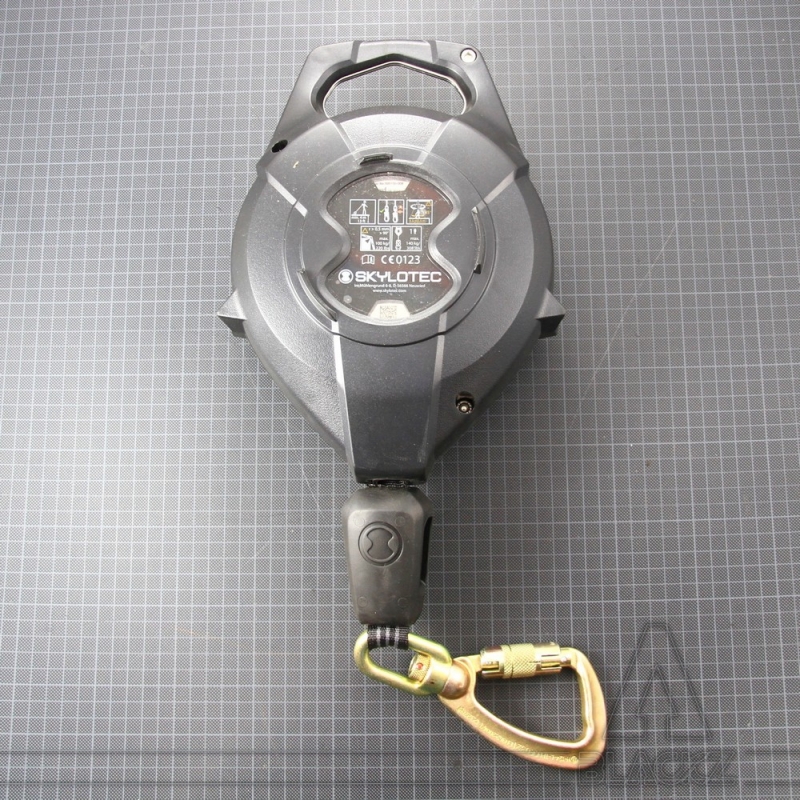

Fall arrest RAPTOR W8 - 8 meter

RAPTOR redefines the concept of safety since it has two fall indicators that are visible to every user. Other smart details include the flexible inlet dampers, the linear force distribution and unequivocal anchor point. Thanks to its sophisticated design, RAPTOR also inspires when it comes to storage, maintenance and durability. All fall arresters are certified to EN 360 and ANSI Z359.14:2007 and can secure a person with a maximum user weight of 140 kg.

 * Characteristics

The RAPTOR fall arrester redefines the concept of safety since it has two fall indicators that are visible to users. These display the functionality of the device from the outside. A red indicator warns the user as soon as the device is due for inspection. RAPTOR has a modular construction, which means that elements can be interchanged piece by piece. This reduces maintenance costs and the time it takes for audits. An energy-absorbing inlet damper protects the device housing and interior mechanisms against damage. The rope-sparing pulley prevents additional wear. With RAPTOR attached overhead, it’s possible to work safely up to an angle of 45° with lateral deflection of up to 1.5 m. The carefully thought-out housing design allows space-saving and device-protecting storage.

 * Two fall indicators

The device has two fall indicators - one in the housing and one on the carabiner. These use a clear system of colour symbols to indicate whether the fall arrester is still safe to use, or whether it needs to be checked by a professional. A green indicator means that the device is intact. A red indicator warns against further use because the brake has already been triggered. The user is therefore protected against using a device that is not ready for use, and it can also save time during the annual prescribed audit.

* Energy-absorbing inlet damper and intuitive operation

An energy-absorbing inlet damper made from plastic prevents the carabiner from striking un-braked against the device housing when the rope is being retracted. This protects the fall arrester not just against constantly occurring impacts, but also against hand injuries and crushing when the rope is being retracted.

The fall arrester is intuitive in terms of its operation, since the anchor point is clearly designed in the shape of a handle and therefore only allows one clear fastening option.

Specifications


 * RAPTOR W8: Textile tape with trilock carabiner
 * Length: 8 meters
 * International Standard: ANSI Z359.14: 2014
 * Standard: CNB / P / 11.060: 2005, EN 360: 2002
 * Allowable weight: 140 kg
 * Product weight: 4.380 kg
 * Materials: AL, ST, Plastic, Polyester
