VECTOR

A particularly portable and lightweight offset mast to adapt to many technical lifting or difficult access situations.

A technical product that will save many delicate situations in the rope access and rope rescue sectors.

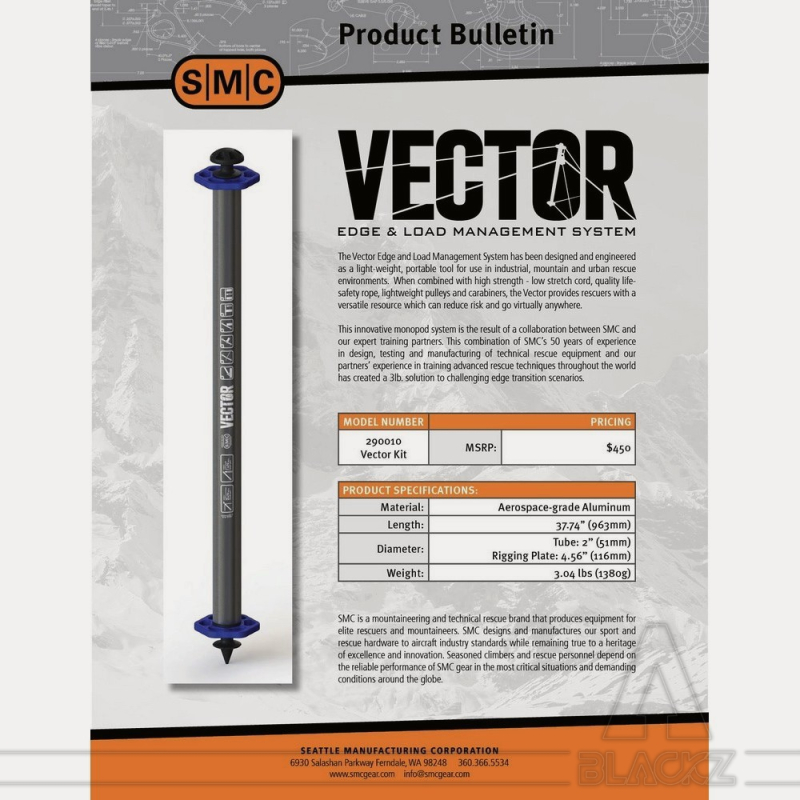

Description

The Vector Edge and Load Management System has been designed and engineered as a light-weight, portable tool for use in industrial, mountain and urban rescue environments.

When combined with high strength - low stretch cord, quality life-safety rope, lightweight pulleys and carabiners, the Vector provides rescuers with a versatile resource which can reduce risk and go virtually anywhere.

This innovative monopod system is the result of a collaboration between SMC and our expert training partners.

This combination of SMC’s 50 years of experience in design, testing and manufacturing of technical rescue equipment and our partners’ experience in training advanced rescue techniques throughout the world has created a 3lb. solution to challenging edge transition scenarios.

The VECTOR is particularly suited to managing an offset load between an edge and the void:
- To allow the lifting line to be verticalized offset from the wall
- To avoid wearing out the ropes and taking the risk of cutting
- To allow a transition of the load - by tilting the mast - above the edge and towards the flat ground

Specifications

* Comes with a flip-up anchor tip on one side
* Comes with an ball foot that flips to the other side
* Length: 37.74” (963 mm)
* Tube Diameter: 2” (51 mm)
* Rigging Plate Diameter: 4.56” (116 mm)
* Materials: 6061 Aluminum and 7075 Aluminum
* Weight: 3.04 lbs. (1380 g)
* WLL for High Anchor Configuration: 1 kN (100 kg)
* WLL for High Directional Configuration: 2 kN (200 kg)
* Made in USA
