Manufacturer :

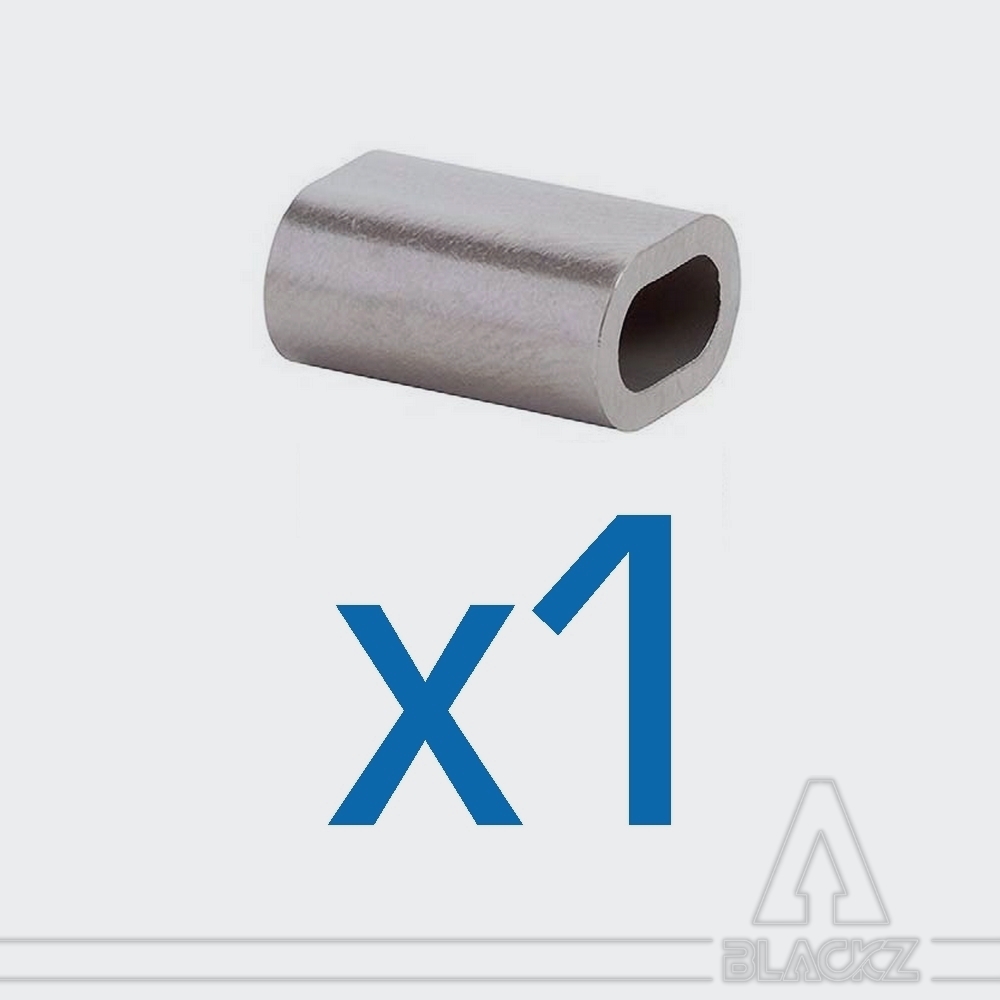

Swaging Oval Sleeves, Stainless Steel NICOPRESS - unit

Fast shipping

Condition : New product

Choose your Diameter

Reference :

More info
Data sheet

NICOPRESS
Swaging Oval Sleeve for stainless steel wire

Conditioning : sold by unit.

Nicopress® patented and developed the science for the oval sleeve connection system, and continues to successfully secure customers’ critical applications worldwide in industries that require efficiency, safety, reliability and quality.

Oval sleeves (sometimes named ferrules) are to be used when you want to make a sling with loop termination, with or without thimble. They can also be used to splice two cables together.

Nicopress stainless steel oval sleeves are compatible with :
* Stainless steel cable
* wire rope.

Other possible materials for Nicopress oval sleeves are :
* copper
* zinc plated copper
* tin plated copper
* black oxide
* aluminium.

Be sure to respect the recommendations of crimping Nicopress, among others :
* sleeve and cable compatibility
* crimping tool and sleeve compatibility
* respect of crimping rules (order and number of crimp, etc.).

Sleeves hold up to 100% RBS (wire rated breaking strength) and comply with requirements and standards including MS51844, EN 12385 and EN 13411-3.

Check the compatibility of the sleeve according to the cable to be crimped. For any question please contact us.

Other packaging available for these same references : by 10 or 100 pieces.

Correspondence Table : NICOPRESS stainless steel oval sleeve

Sleeve			Swaging
Ø cable (mm)	Ø cable (inch)	Nicopress Stock number	Hand Tools		Hydraulic Tools		Pneuma- tic Tool	Battery Tools
			single groove	multi- groove	3512 Die	635 Die	Pneuma- tic Tool	5506 - 5606 Die	5512 - 5612 Die
			single groove	multi- groove	3512 Die	635 Die	AT Die	5506 - 5606 Die	5512 - 5612 Die
1 mm	1/32''	168-1-VB	31-B
1,2 - 1,5 mm	3/64''	168-1.5-VB4	51-B4-887	33V-CGB4	12-OVAL-B4	OVAL B4	AT-B4		12-OVAL-B4
2 mm	1/16''	168-2-VB4	51-B4-887		12-OVAL-B4	OVAL B4	AT-B4		12-OVAL-B4
2,5 mm	3/32''	168-3-VC	51-C-887 3-C-887		12-OVAL-C	OVAL C	AT-C		12-OVAL-C
3,5 mm	1/8''	168-4-VG	51-G-887 3-G-887		12-OVAL-G	OVAL G	AT-G		12-OVAL-G
4 mm	5/32''	168-5-VM	51-M-850 3-M-850		12-OVAL-M	OVAL M	AT-M		12-OVAL-M
5 mm	3/16''	168-6-VP	51-P-850		12-OVAL-P	OVAL 168-6-VP	AT-P		12-OVAL-P
6 mm	1/4''	168-8-VF2	3-F2-950		12-OVAL-F2	OVAL F2	AT-F2		12-OVAL-F2
8 mm	5/16''	168-10-VF6			12-168-F6	OVAL 168-10-F6			12-168-F6

Import taxes have a significant impact, prices can be adjusted downwards throughout the NICOPRESS range, depending on quantities. Make your quote on the shop and contact us.
