HR D shackle 10 mm

Forged D shackle in HR stainless steel grade 17.4 PH (630) diameter 10 mm

Description

- Outstanding working and breaking load
- A HR can be up to 60% more resistant than a shackle in 316L stainless steel
- Safety factor : 5
- The forgig process guarantees outstanding working and breaking loads as wel as fatigue resistance and corrosion resistance

WLL: only for industrial applications (lifting i.e…) CE marking and batch number

Applications

Perfect for high load applications. Connecting betwwen two components, industrial lifting. Stainless steel shackles are used to conect severals accessories. Never use HR shackle for underwater applications.

Standard applications of shackle

Specifications

* Materials : HR 17.4 PH stainless steel grade
* Working load (nautical applications) : 2640 kg
* WLL : 1200 kg
* Breaking load : 6000 kg
* Weight : 102 g

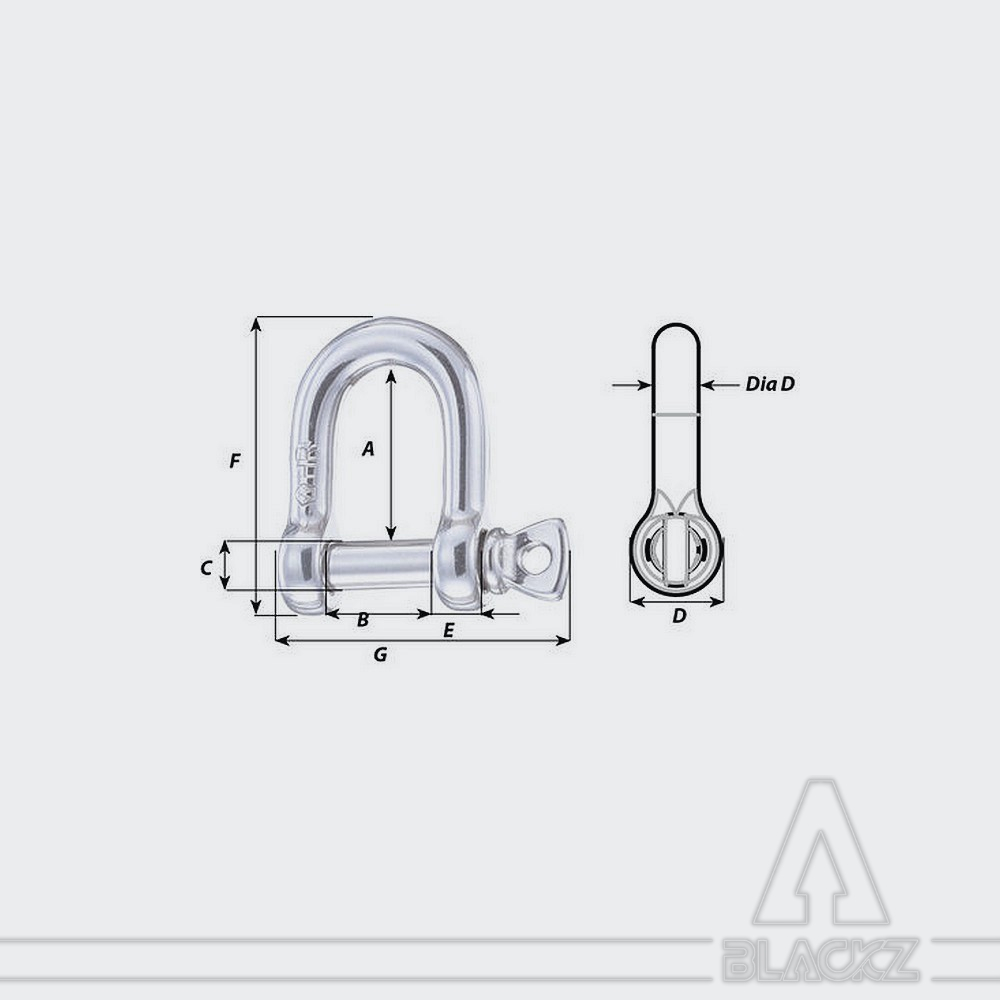

* A : 33 mm
* B : 20 mm
* C : 10 mm
* D : 20 mm
* D diameter : 10 mm
* E : 9 mm
* F : 60 mm
* G : 58 mm
